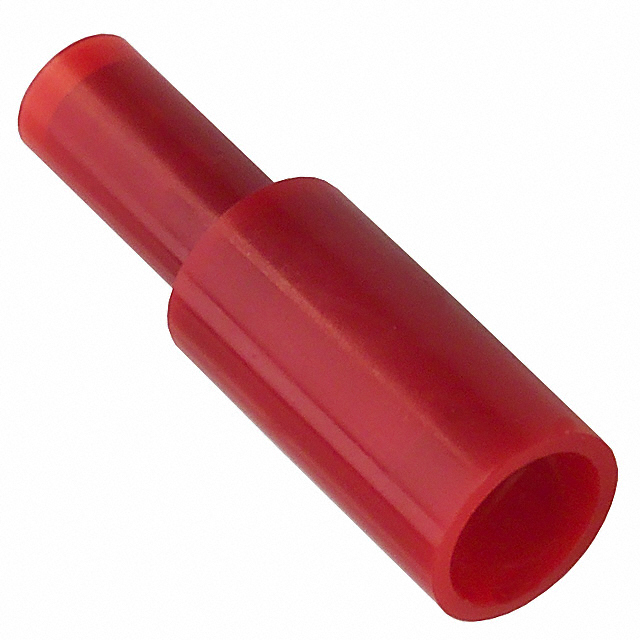

0190390001

Active

Molex

CONN TERM RCPT 18-22AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0190390001

Active

Molex

CONN TERM RCPT 18-22AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190390001

Color	Red
Contact Finish	Tin
Contact Material	Brass
Diameter - Barrel [diameter]	3.96 mm
Diameter - Barrel [diameter]	0.156 in
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.128 "
Insulation Diameter [diameter]	3.25 mm
Length - Barrel [x]	15 mm
Length - Barrel [x]	0.59 in
Length - Overall	25.78 mm
Length - Overall	1.015 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Terminal Type	Female, Receptacle (Socket)
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019039 Series

Part	Insulation	Material - Insulation	Terminal Type	Contact Finish	Length - Barrel [x]	Length - Barrel [x]	Length - Overall [x]	Length - Overall [x]	Termination	Color	Contact Material	Insulation Diameter	Insulation Diameter [diameter]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Overall	Length - Overall	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter
Molex 0190390034	Fully Insulated	Nylon Polyamide (PA)	Female Receptacle (Socket)	Tin	0.598 in	15.2 mm	1.02 in	25.91 mm	Crimp	Blue	Brass	3.68 mm	0.145 "	3.96 mm	0.156 in
Molex 0190390002	Fully Insulated	Nylon Polyamide (PA)	Female Receptacle (Socket)	Tin	0.59 in	15 mm			Crimp	Red	Brass		0.125 in	3.96 mm	0.156 in	25.78 mm	1.015 in	22 AWG	17.5 AWG	3.18 mm
Molex 0190390026	Fully Insulated	Poly-Vinyl Chloride (PVC)	Female Receptacle (Socket)	Tin	0.426 "	10.82 mm			Crimp	Red	Brass		0.125 in	3.96 mm	0.156 in	25.78 mm	1.015 in	22 AWG	17.5 AWG	3.18 mm
Molex 0190390009	Fully Insulated	Poly-Vinyl Chloride (PVC)	Female Receptacle (Socket)	Tin	0.598 in	15.2 mm	1.02 in	25.91 mm	Crimp	Blue	Brass	3.68 mm	0.145 "
Molex 0190390032	Fully Insulated	Poly-Vinyl Chloride (PVC)	Female Receptacle (Socket)	Tin	0.58 "	14.73 mm			Crimp	Red	Brass		0.128 "	3.96 mm	0.156 in	25.78 mm	1.015 in	22 AWG	17.5 AWG	3.25 mm
Molex 0190390010	Fully Insulated	Nylon Polyamide (PA)	Female Receptacle (Socket)	Tin	0.598 in	15.2 mm	1.02 in	25.91 mm	Crimp	Blue	Brass	3.68 mm	0.145 "
Molex 0190390006	Fully Insulated	Poly-Vinyl Chloride (PVC)	Female Receptacle (Socket)	Tin	0.59 in	15 mm			Crimp	Blue	Brass	0.15 in		3.96 mm	0.156 in	25.78 mm	1.015 in				3.81 mm
Molex 0190390001	Fully Insulated	Poly-Vinyl Chloride (PVC)	Female Receptacle (Socket)	Tin	0.59 in	15 mm			Crimp	Red	Brass		0.128 "	3.96 mm	0.156 in	25.78 mm	1.015 in	22 AWG	17.5 AWG	3.25 mm
Molex 0190390005	Fully Insulated	Nylon Polyamide (PA)	Female Receptacle (Socket)	Tin	0.598 in	15.2 mm	1.02 in	25.91 mm	Crimp	Red	Brass		0.125 in					22 AWG	17.5 AWG	3.18 mm
Molex 0190390016	Fully Insulated	Nylon Polyamide (PA)	Female Receptacle (Socket)	Tin	0.59 in	15 mm	1.02 in	25.91 mm	Crimp	Blue	Brass	3.68 mm	0.145 "	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.40
		10	$ 0.29
		25	$ 0.26
		50	$ 0.24
		100	$ 0.22
		250	$ 0.20
		500	$ 0.19
		1000	$ 0.17
		2500	$ 0.16

Description

General part information

019039 Series

Terminal Connector Female, Receptacle (Socket) 18-22 AWG Crimp Tin
