430165-507

Active

Laird Thermal Systems, Inc.

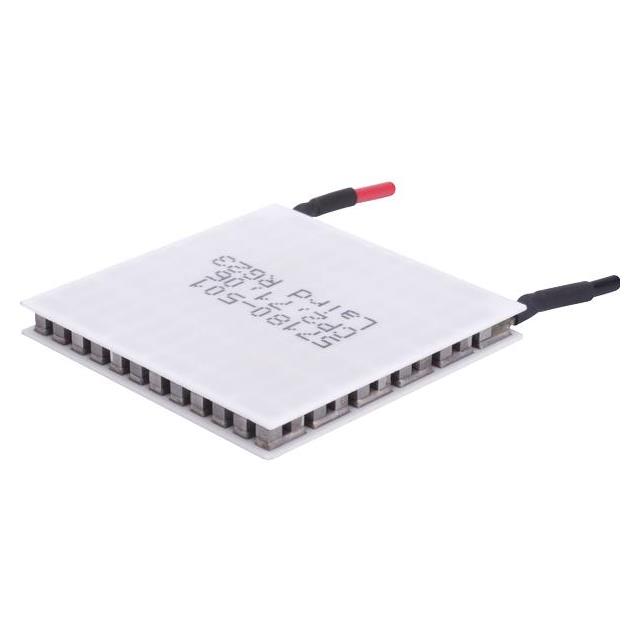

PELTIER CP2,71,06,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP2,71,06,L1,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	430165-507

Current - Max [Max]	14.3 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	4.57 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	68.4 W
Resistance	530 mOhms
Size / Dimension [x]	43.94 mm
Size / Dimension [y]	43.94 mm
Voltage - Max [Max]	8.1 V

Part	Resistance	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Height [z]	Number of Stages	Delta Tmax @ Th	Current - Max [Max]	Features	Voltage - Max [Max]	Qmax @ Th
Laird Thermal Systems, Inc. 430165-507	530 mOhms	43.94 mm	43.94 mm	80 °C	4.57 mm	1	67 °C	14.3 A	Lead Wires Sealed - Silicone RTV	8.1 V	68.4 W
Laird Thermal Systems, Inc. 430165-509	530 mOhms	43.9 mm	43.9 mm	80 °C	4.57 mm	1	67 °C	14.3 A	Lead Wires Sealed - Epoxy	8.1 V	68.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 36.02

General part information

Peltier Module 68.4W @ 25°C 14.3 A 80°C
