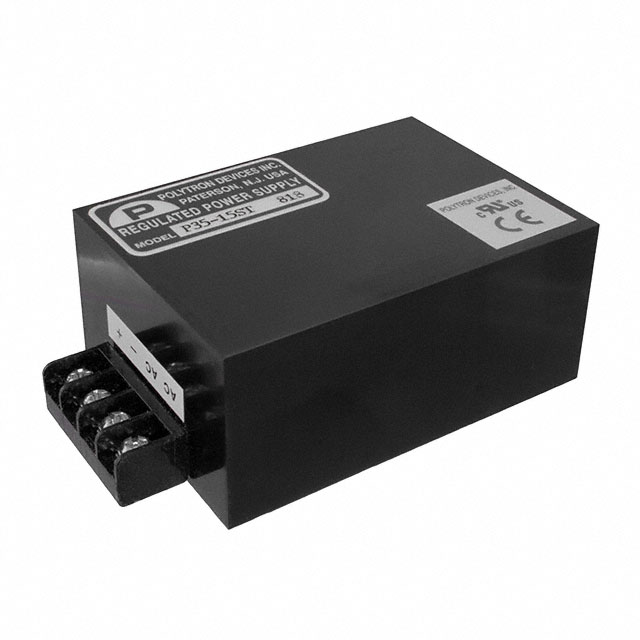

P35-15ST

Active

Polytron

AC-DC POWER MODULE 15VDC OUTPUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsP3, P5 Series Datasheet~Datasheet

P35-15ST

Active

Polytron

AC-DC POWER MODULE 15VDC OUTPUT

Deep-Dive with AI

DocumentsP3, P5 Series Datasheet~Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P35-15ST

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	300 mA
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-25 °C
Type	Enclosed
Voltage - Input [Max]	125 VAC
Voltage - Input [Min]	105 VAC
Voltage - Output 1	15 V

P35-15 Series

Part	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Output 1	Line Regulation	Features	Type	Applications	Current - Output (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Load Regulation	Current - Output 1
Polytron P35-15SXA	1	105 VAC	230 VAC/DC	-25 °C	71 °C	CE cURus UL	15 V	0.1 %	SCP	Enclosed	ITE (Commercial)	300 mA	7-DIP Module 5 Leads	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	Through Hole	0.1 %
Polytron P35-15S/MHIA	1	105 VAC	125 VAC	-25 °C	71 °C	CE cURus	15 V	0.1 %		Enclosed	Medical	300 mA	7-DIP Module 5 Leads	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	Through Hole	0.1 %
Polytron P35-15SQ	1	100 VAC	125 VAC	-25 °C	71 °C	CE cURus UL	15 V	0.1 %	SCP	Enclosed	ITE (Commercial)	300 mA	7-DIP Module 5 Leads	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	Through Hole	0.1 %
Polytron P35-15ST	1	105 VAC	125 VAC	-25 °C	71 °C	CE cURus	15 V			Enclosed	ITE (Commercial)									Chassis Mount		300 mA
Polytron P35-15SXA/MHIA	1	105 VAC	230 VAC/DC	-25 °C	71 °C	CE cURus	15 V	0.1 %		Enclosed	Medical	300 mA	7-DIP Module 5 Leads	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	Through Hole	0.1 %
Polytron P35-15SAX/MHIA	1	115 VAC	220 VAC	-25 °C	71 °C	CE cURus	15 V	0.1 %		Enclosed	Medical	300 mA	7-DIP Module 5 Leads	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	Through Hole	0.1 %
Polytron P35-15SQX/MHIA	1	100 VAC	220 VAC	-25 °C	71 °C	CE cURus	15 V	0.1 %		Enclosed	Medical	300 mA	7-DIP Module 5 Leads	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	Through Hole	0.1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 179.81

Description

General part information

P35-15 Series

Enclosed AC DC Converters 1 Output 15V 105 ~ 125 VAC Input
