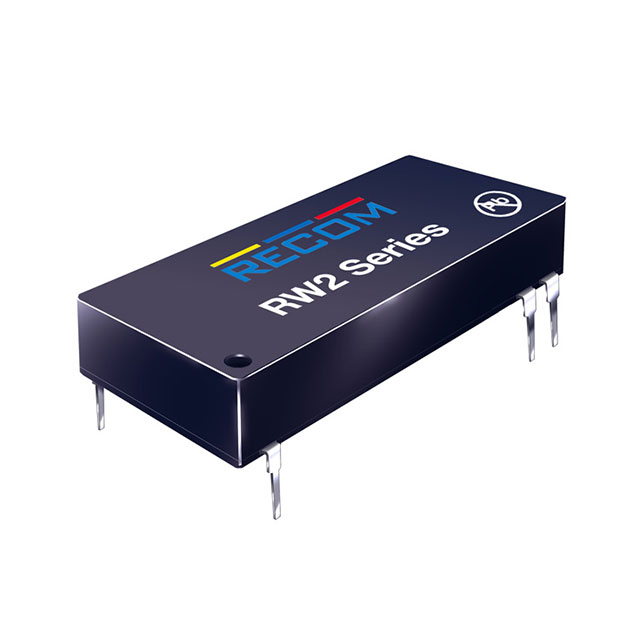

RW2-4815S/H3/B

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC MIN 3KV REG 2:1 36-72VIN 15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RW2-4815S/H3/B

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC MIN 3KV REG 2:1 36-72VIN 15VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RW2-4815S/H3/B

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	134 mA
Efficiency	81 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-DIP Module
Package / Case	6 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.87 in
Size / Dimension [x]	22.1 mm
Size / Dimension [y]	0.49 in
Size / Dimension [y]	12.6 mm
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Type	Isolated Module
Voltage - Input (Max) [Max]	72 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

RW2-483.3 Series

Isolated DC/DC Converters - SMD 2W DC/DC 3kV REG 2:1 4.5-9Vin +/-15Vout

Part	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Voltage - Output 2	Features	Number of Outputs	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Type	Efficiency	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Min]
RECOM Power RW2-4815D/H2	36 V	16-DIP Module	6 Leads	15 V	67 mA	67 mA	2 W	-15 V	SCP	2	72 V	85 °C	-40 °C	ITE (Commercial) Medical	2000 V	0.38 in	24.2 mm	9.7 mm	0.95 in	0.57 in	14.5 mm	Through Hole	Isolated Module	83 %
RECOM Power RW2-0505S/H2	4.5 V	16-DIP Module	6 Leads	5 V			2 W		SCP	1	9 V	85 °C	-40 °C	ITE (Commercial) Medical	2000 V	0.38 in	24.2 mm	9.7 mm	0.95 in	0.57 in	14.5 mm	Through Hole	Isolated Module	73 %	400 mA
RECOM Power RW2-1215S/H2/B	9 V	16-DIP Module	6 Leads	15 V			2 W		SCP	1	18 V	85 °C	-40 °C	ITE (Commercial) Medical	2000 V	0.33 in	22.1 mm		0.87 in	0.49 in		Through Hole	Isolated Module	80 %	134 mA	12.6 mm	8.5 mm
RECOM Power RW2-053.3D/H2/SMD	4.5 V	16-SMD Module 6 Leads		3.3 V	250 mA	250 mA	2 W	-3.3 V	SCP	2	9 V	85 °C	-40 °C	ITE (Commercial) Medical	2000 V	0.4 "	24.2 mm		0.95 in	0.57 in		Surface Mount	Isolated Module			14.5 mm	10.2 mm
RECOM Power RW2-4815S	36 V	16-DIP Module	6 Leads	15 V			2 W		SCP	1	72 V	85 °C	-40 °C	ITE (Commercial) Medical	1000 V	0.38 in	24.2 mm	9.7 mm	0.95 in	0.57 in	14.5 mm	Through Hole	Isolated Module	81 %	134 mA
RECOM Power RW2-0509D/H3/B	4.5 V	16-DIP Module	6 Leads	9 V			2 W	-9 V	SCP	2	9 V	85 °C	-40 °C	ITE (Commercial) Medical	3000 V	0.33 in	22.1 mm		0.87 in	0.49 in		Through Hole	Isolated Module	74 %	111 mA	12.6 mm	8.5 mm	111 mA
RECOM Power RW2-053.3D/SMD	4.5 V	16-SMD Module 6 Leads		3.3 V	250 mA	250 mA	2 W	-3.3 V	SCP	2	9 V	85 °C	-40 °C	ITE (Commercial) Medical	1000 V	0.4 "	24.2 mm		0.95 in	0.57 in		Surface Mount	Isolated Module			14.5 mm	10.2 mm
RECOM Power RW2-4809S/SMD	36 V	16-SMD Module 6 Leads		9 V			2 W		SCP	1	72 V	85 °C	-40 °C	ITE (Commercial) Medical	1000 V	0.4 "	24.2 mm		0.95 in	0.57 in		Surface Mount	Isolated Module		222 mA	14.5 mm	10.2 mm
RECOM Power RW2-1212S/H2/SMD	9 V	16-SMD Module 6 Leads		12 V			2 W		SCP	1	18 V	85 °C	-40 °C	ITE (Commercial) Medical	2000 V	0.4 "	24.2 mm		0.95 in	0.57 in		Surface Mount	Isolated Module	80 %	166 mA	14.5 mm	10.2 mm
RECOM Power RW2-4815S/H3/B	36 V	16-DIP Module	6 Leads	15 V			2 W		SCP	1	72 V	85 °C	-40 °C	ITE (Commercial) Medical	3000 V	0.33 in	22.1 mm		0.87 in	0.49 in		Through Hole	Isolated Module	81 %	134 mA	12.6 mm	8.5 mm
