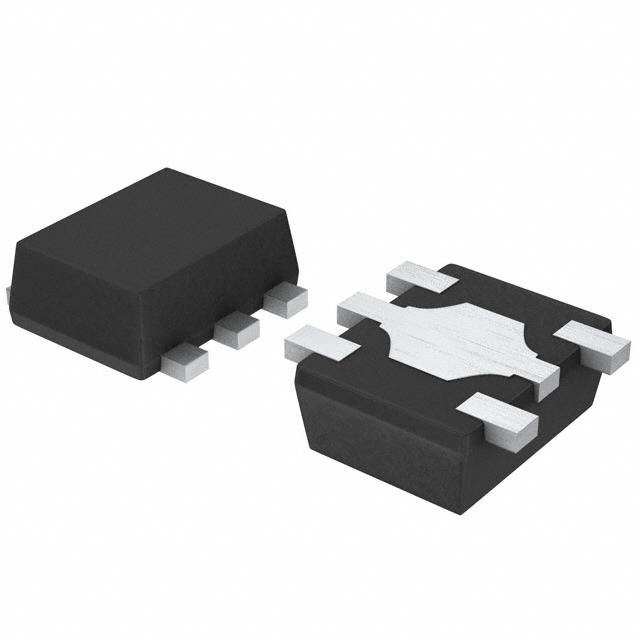

BD1020HFV-TR

Active

Rohm Semiconductor

TEMPERATURE SENSOR IC, ANALOG, ± 1.5°C, -30 °C, 100 °C, HVSOF, 5 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBD1020HFV-TR Flammability HVSOF5 Taping Spec +18

BD1020HFV-TR

Active

Rohm Semiconductor

TEMPERATURE SENSOR IC, ANALOG, ± 1.5°C, -30 °C, 100 °C, HVSOF, 5 PINS

Deep-Dive with AI

DocumentsBD1020HFV-TR Flammability HVSOF5 Taping Spec +18

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD1020HFV-TR

Accuracy - Highest (Lowest) [Max]	1.5 °C
Accuracy - Highest (Lowest) [Min]	2.5 °C
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Analog Voltage
Package / Case	SOT-665
Resolution	8.2 mV/°C
Sensing Temperature - Local [Max]	100 °C
Sensing Temperature - Local [Min]	-30 °C
Sensor Type	Local, Analog
Supplier Device Package	5-HVSOF
Test Condition	-30°C ~ 100°C
Test Condition	30 °C
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.4 V

BD1020HFV Series

Analog Output Temperature Sensor IC

Part	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Supplier Device Package	Output Type	Package / Case	Test Condition	Test Condition	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Accuracy - Highest (Lowest) [Max]	Accuracy - Highest (Lowest) [Min]	Resolution	Mounting Type	Suggested Programming Environment	Utilized IC / Part	Function	Type	Platform	Contents
Rohm Semiconductor BD1020HFV-TR	-30 °C	100 °C	5-HVSOF	Analog Voltage	SOT-665	-30°C ~ 100°C	30 °C	100 °C	-30 ░C	2.4 V	5.5 V	Analog Local	1.5 °C	2.5 °C	8.2 mV/°C	Surface Mount
Rohm Semiconductor BD1020HFV-EVK-001																	Arduino	BD1020	Temperature	Sensor	SensorShield	Board(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.77
		5	$ 0.65
		10	$ 0.60
		25	$ 0.55
		50	$ 0.51
		100	$ 0.47
		500	$ 0.40
		1000	$ 0.37
	Digi-Reel®	1	$ 0.77
		5	$ 0.65
		10	$ 0.60
		25	$ 0.55
		50	$ 0.51
		100	$ 0.47
		500	$ 0.40
		1000	$ 0.37
	Tape & Reel (TR)	3000	$ 0.25
Newark	Each (Supplied on Cut Tape)	1	$ 0.53
		10	$ 0.43
		25	$ 0.42
		50	$ 0.41
		100	$ 0.40
		300	$ 0.38
		500	$ 0.36
		1000	$ 0.34

Description

General part information

BD1020HFV Series

BD1020HFV is low quiescent current (4µA) and high accuracy temperature sensor. Detecting temperature by itself, output voltage appears linearly along the temperature.
