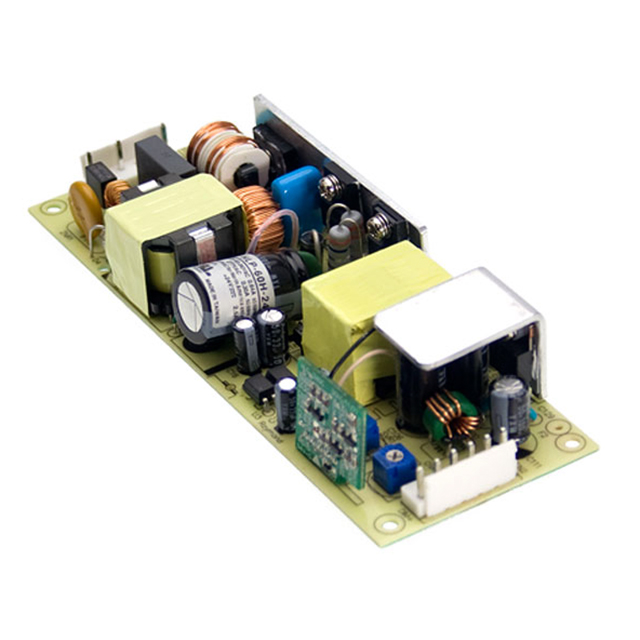

HLP-60H-20
NRNDMEAN WELL USA Inc.
LED DRIVER CC AC/DC 12-20V 3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLP-60H-20
NRNDMEAN WELL USA Inc.
LED DRIVER CC AC/DC 12-20V 3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLP-60H-20 |
|---|---|
| Approval Agency | TUV, cURus, CB, CCC, CE |
| Current - Output (Max) [Max] | 3 A |
| Dimming | Analog, PWM |
| Efficiency | 89 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 5.8 " |
| Size / Dimension [x] | 147.2 mm |
| Size / Dimension [y] | 53 mm |
| Size / Dimension [y] | 2.09 " |
| Size / Dimension [z] | 27 mm |
| Size / Dimension [z] | 1.06 in |
| Termination Style | Rectangular, 6 Position |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 20 V |
| Voltage - Output [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.40 | |
| 10 | $ 20.50 | |||
Description
General part information
HLP-60H Series
3A 12 ~ 20V Constant Current LED Driver AC DC Converter Topology 1 Output
