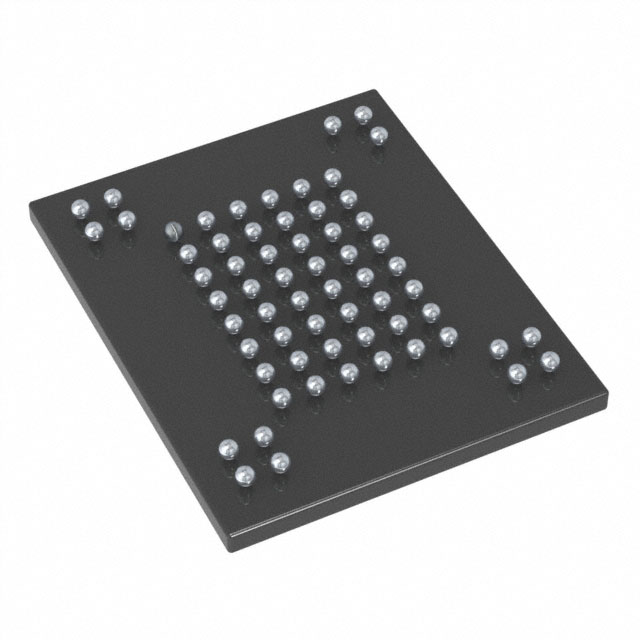

IS34MW01G164-BLI

Active

ISSI, Integrated Silicon Solution Inc

1GBIT (X16, 4 BIT ECC), 63 BALL VFBGA, 1.8V, ROHS, IT

Search across all available documentation for this part.

Active

ISSI, Integrated Silicon Solution Inc

1GBIT (X16, 4 BIT ECC), 63 BALL VFBGA, 1.8V, ROHS, IT

Technical Specifications

Parameters and characteristics for this part

Specification	IS34MW01G164-BLI

Access Time	45 ns
Memory Format	FLASH
Memory Interface	Parallel
Memory Organization	64 M
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	63-VFBGA
Supplier Device Package	63-VFBGA (9x11)
Technology	FLASH - NAND (SLC)
Voltage - Supply [Max]	1.95 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page [custom]	45 ns
Write Cycle Time - Word, Page [custom]	45 ns

Part	Memory Format	Mounting Type	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Access Time	Supplier Device Package	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Memory Organization	Memory Size	Memory Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Type
ISSI, Integrated Silicon Solution Inc IS34MW01G164-BLI	FLASH	Surface Mount	45 ns	45 ns	45 ns	63-VFBGA (9x11)	FLASH - NAND (SLC)	85 °C	-40 °C	63-VFBGA	64 M	1 Mbit	Parallel	1.95 V	1.7 V	Non-Volatile
ISSI, Integrated Silicon Solution Inc IS34MW01G164-BLI-TR	FLASH	Surface Mount	45 ns	45 ns	30 ns	63-VFBGA (9x11)	FLASH - NAND (SLC)	85 °C	-40 °C	63-VFBGA	64 M	1 Mbit	Parallel	1.95 V	1.7 V	Non-Volatile

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FLASH - NAND (SLC) Memory IC 1Gbit Parallel 45 ns 63-VFBGA (9x11)
