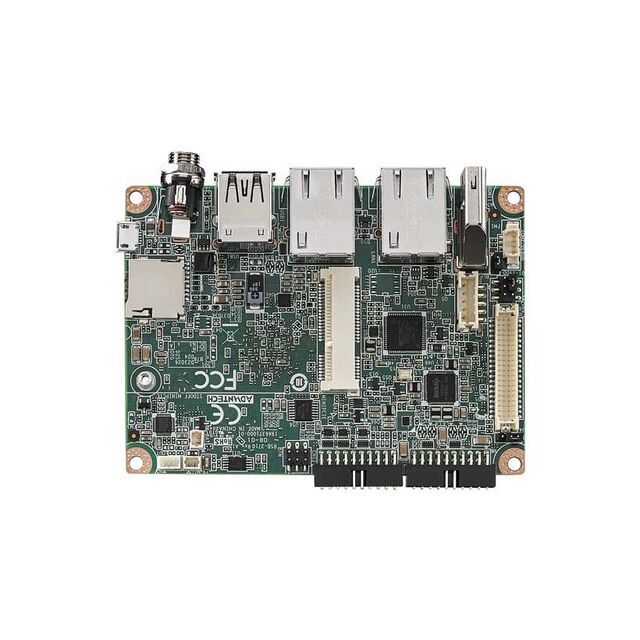

RSB-3710CO-XNA1E

Active

Advantech Corp

SBC 1.8GHZ 2/4 CORE -/2GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.8GHZ 2/4 CORE -/2GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	RSB-3710CO-XNA1E

Cooling Type	Heat Sink
Core Processor	ARM Cortex A53, Cortex A72, Rockchip RK3399
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	mPCIe, UART, LAN, I2C, SD, CAN, Audio, SIM, M.2
Form Factor	2.5" SBC
Number of Cores [Max]	4
Number of Cores [Min]	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	11.5 W
RAM Capacity/Installed	-
RAM Capacity/Installed	2 GB
Size / Dimension [x]	99.99 mm
Size / Dimension [x]	3.937 in
Size / Dimension [y]	2.835 in
Size / Dimension [y]	72 mm
Speed	1.8 GHz
Storage Interface	eMMC, NAND - Flash
USB [custom]	USB 2.0 (1), USB 3.0 (1)
Video Outputs	DirectX11, LVDS, eDP, HDMI, OpenCL
Watchdog Timer	True

Part	Video Outputs	Storage Interface	USB [custom]	Number of Cores [Max]	Number of Cores [Min]	Speed	Form Factor	Power (Watts)	Watchdog Timer	Cooling Type	RAM Capacity/Installed	RAM Capacity/Installed	Expansion Site/Bus	Ethernet	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor
Advantech Corp RSB-3710CO-XNA1E	DirectX11 eDP HDMI LVDS OpenCL	eMMC NAND - Flash	USB 2.0 (1) USB 3.0 (1)	4	2	1.8 GHz	2.5" SBC	11.5 W		Heat Sink	-	2 GB	Audio CAN I2C LAN M.2 mPCIe SD SIM UART	10 Mbps 100 Mbps 1000 Mbps	99.99 mm	2.835 in	3.937 in	72 mm	60 °C	0 °C	ARM Cortex A53 Cortex A72 Rockchip RK3399

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 279.30

General part information

Single Board Computer 1.8GHz 2/4 Core -/2GB RAM Rockchip RK3399, ARM Cortex A53, Cortex A72
