SH2B-62

Active

IDEC

RELAY SOCKET, THROUGH HOLE, 8 PINS, 10 A, 300 V, RH2B SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SH2B-62

Active

IDEC

RELAY SOCKET, THROUGH HOLE, 8 PINS, 10 A, 300 V, RH2B SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SH2B-62

For Use With/Related Products	RH Series
Mounting Type	Through Hole
Number of Positions	8
Termination Style	PC Pin
Type	Socket

SH2B Series

Part	Number of Positions	Termination Style	Features	Mounting Type	Type	For Use With/Related Products
IDEC SH2B-05C	8	Screw Terminal	Finger-Safe (IP20) Terminals	DIN Rail	Socket	RH Series
IDEC SH2B-05	8	Screw Terminal		DIN Rail	Socket	RH Series
IDEC SH2B-62	8	PC Pin		Through Hole	Socket	RH Series
IDEC SH2B-02	8	Screw Terminal		Chassis Mount	Socket	RH Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45
		10	$ 2.14
		25	$ 2.03
		50	$ 1.95
		100	$ 1.87
		250	$ 1.77
		500	$ 1.70
		1000	$ 1.63
		5000	$ 1.48
Newark	Each	1	$ 2.57
		10	$ 2.44
		25	$ 2.32
		50	$ 2.18
		100	$ 2.06

Description

General part information

SH2B Series

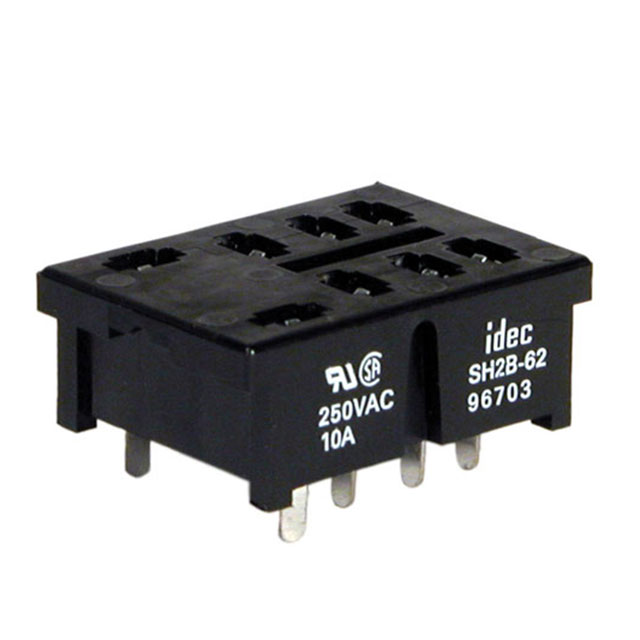

The SH2B-62 is a 8-pin Relay Socket with through hole terminals. Suitable for use with RH2B relays and blade terminal model. The compact midget size of this socket saves space and is ideal for Solder/PCB mounting.
