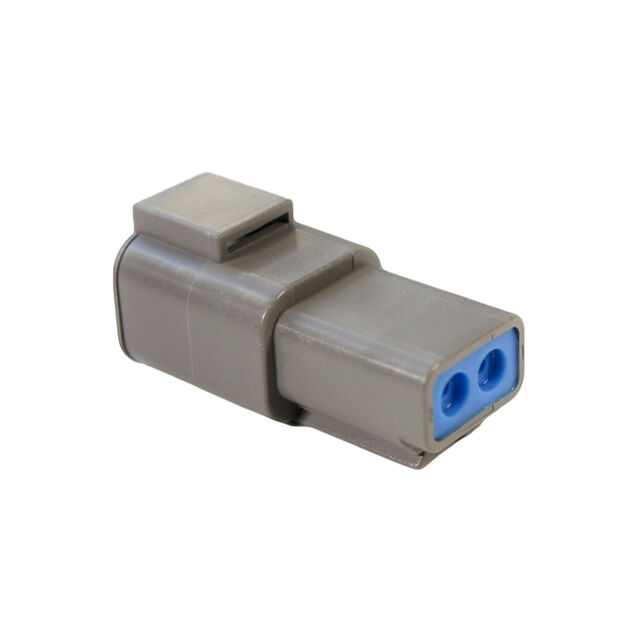

PX1001P02GY
ActiveBULGIN LIMITED
AUTOMOTIVE CONNECTOR HOUSING, PX10 SERIES, RECEPTACLE, 2 POSITIONS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX1001P02GY
ActiveBULGIN LIMITED
AUTOMOTIVE CONNECTOR HOUSING, PX10 SERIES, RECEPTACLE, 2 POSITIONS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX1001P02GY |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.41 | |
| 10 | $ 2.90 | |||
| 25 | $ 2.72 | |||
| 50 | $ 2.59 | |||
| 100 | $ 2.47 | |||
| 250 | $ 2.31 | |||
| 500 | $ 2.20 | |||
| 1000 | $ 2.16 | |||
| 2500 | $ 2.14 | |||
Description
General part information
PX1001 Series
2 Rectangular Connectors - Housings Receptacle Gray
