TAR5S40UTE85LF

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 4V 200MA UFV

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 4V 200MA UFV

Technical Specifications

Parameters and characteristics for this part

Specification	TAR5S40UTE85LF

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	850 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

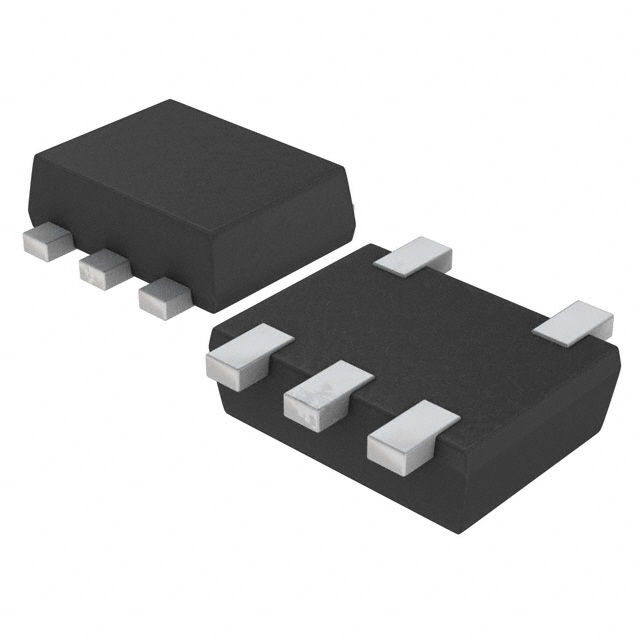

Package / Case	6-SMD (5 Leads), Flat Leads
Protection Features	Over Current, Over Temperature
PSRR	70 dB
Supplier Device Package	UFV
Voltage - Input (Max) [Max]	15 V
Voltage - Output (Min/Fixed)	4 V
Voltage Dropout (Max) [Max]	0.2 V

Part	Package / Case	Output Configuration	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Protection Features	Supplier Device Package	Current - Quiescent (Iq)	Current - Output	Number of Regulators	PSRR	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]
Toshiba Semiconductor and Storage TAR5S40UTE85LF	6-SMD (5 Leads) Flat Leads	Positive	0.2 V	15 V	Over Current Over Temperature	UFV	850 µA	200 mA	1	70 dB	1.81 mOhm	Surface Mount	85 °C	-40 °C	Enable	4 V
Toshiba Semiconductor and Storage TAR5S40(TE85L,F)	SC-74A SOT-753	Positive	0.2 V	15 V	Over Current Over Temperature	SMV		200 mA	1	70 dB	1.81 mOhm	Surface Mount	85 °C	-40 °C	ON/OFF	4 V	850 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA UFV
