Technical Specifications
Parameters and characteristics for this part
| Specification | MPM3550EGLE |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 94.6 % |
| Features | OCP, UVLO, OTP, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

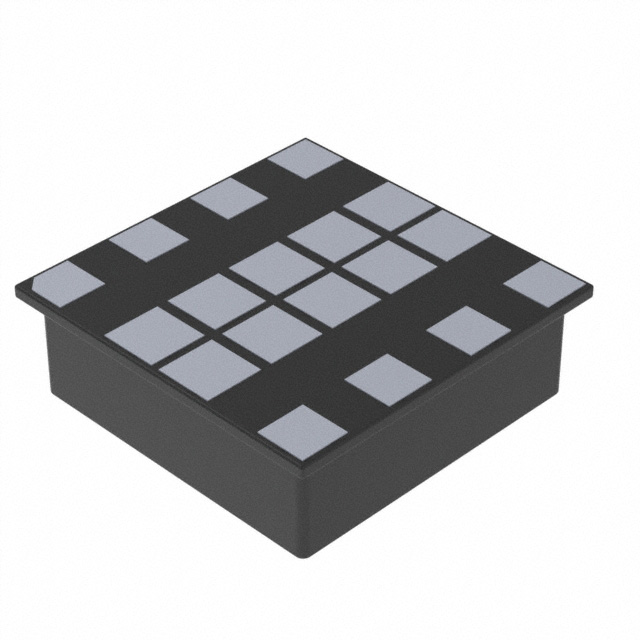

| Package / Case | 18-BLGA Module |
| Size / Dimension [x] | 0.47 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [z] | 4.2 mm |
| Size / Dimension [z] | 0.17 in |
| Supplier Device Package | 18-LGA (12x12) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 12 V |
| Voltage - Output 1 [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.16 | |
| 10 | $ 10.25 | |||
| 25 | $ 9.83 | |||
| 80 | $ 8.66 | |||
| 230 | $ 8.23 | |||
| 840 | $ 7.70 | |||
Description
General part information
MPM3550 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 12V 5A 4.5V - 36V Input
