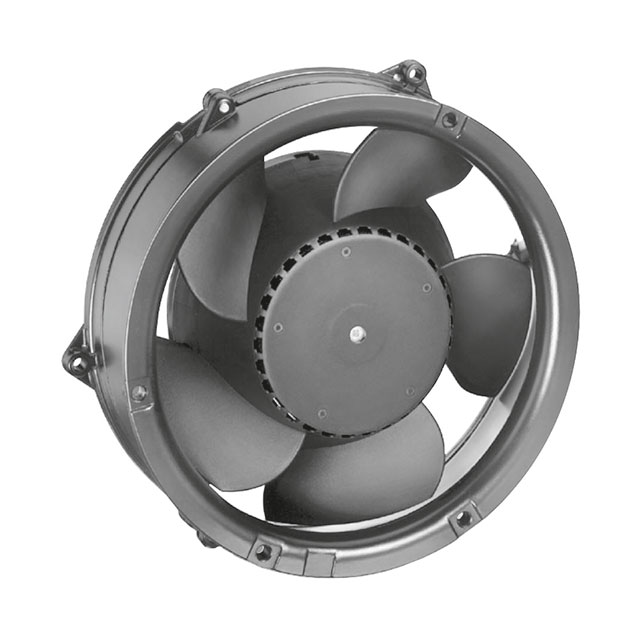

DV6224/2

Active

ebm-papst Inc.

FAN: DC; DIAGONAL; 24VDC; Ø172X51MM; 540M3/H; 63DBA; BALL; 4300RPM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN: DC; DIAGONAL; 24VDC; Ø172X51MM; 540M3/H; 63DBA; BALL; 4300RPM

Technical Specifications

Parameters and characteristics for this part

Specification	DV6224/2

Air Flow	317.8 CFM
Air Flow	8.9 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	180000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	63 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	40 W
RPM	4300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	171.5 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	2 "

Part	Weight	Weight	Approval Agency	Voltage - Rated	Power (Watts)	Material - Frame	Noise	Air Flow	Air Flow	Bearing Type	Material - Blade	Termination	Features	Voltage Range [Min]	Voltage Range [Max]	RPM	Size / Dimension	Size / Dimension [diameter]	Lifetime @ Temp.	Fan Type	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
ebm-papst Inc. DV6224/2	816.5 g	1.8 lbs	CE CSA UL VDE	24 VDC	40 W	Aluminum	63 dB	317.8 CFM	8.9 m³/min	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	3 Wire Leads	Speed Sensor (Tach)	16 VDC	28 VDC	4300 RPM	Round	171.5 mm	180000 Hrs	Tubeaxial	2 "	-20 C	-20 °C	75 ░C	75 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 183.64
		10	$ 148.03
		30	$ 142.09
Newark	Each	25	$ 191.32
		50	$ 180.89
TME	N/A	1	$ 2.19
		20	$ 2.05

General part information

Fan Tubeaxial 24VDC Round - 171.5mm Dia Ball 317.8 CFM (8.90m³/min) 3 Wire Leads
