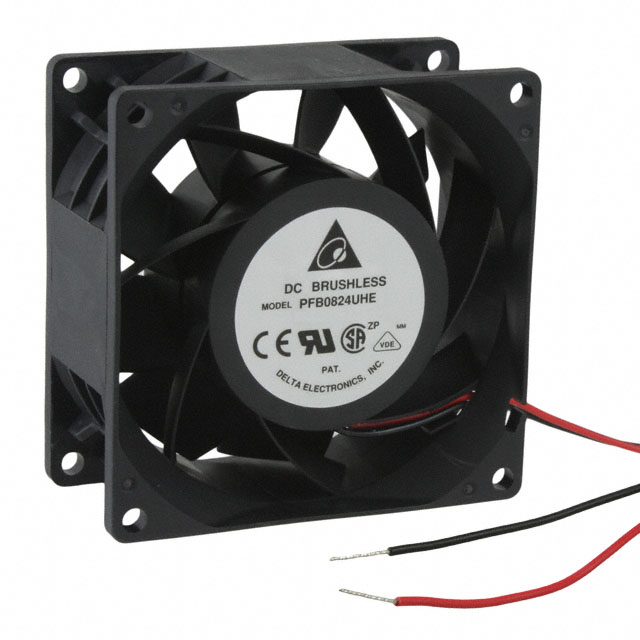

PFB0824UHE-T500
ActiveDelta Electronics
DC FAN AXIAL BALL 24V 14V TO 26.4V 107.3CFM 61DB 80 X 80 X 38MM
Deep-Dive with AI
Search across all available documentation for this part.
PFB0824UHE-T500
ActiveDelta Electronics
DC FAN AXIAL BALL 24V 14V TO 26.4V 107.3CFM 61DB 80 X 80 X 38MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFB0824UHE-T500 |
|---|---|
| Air Flow | 3 m³/min |
| Air Flow | 107.3 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 770 mA |
| Fan Type | Tubeaxial |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 61 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 18.48 W |
| RPM | 7500 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 1.368 in H2O |
| Static Pressure | 340.8 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 200.03 g |
| Weight | 0.441 lb |
| Width [y] | 38 mm |
PFB0824 Series
| Part | Lifetime @ Temp. | Air Flow | Air Flow | Approval Agency | Fan Type | Power (Watts) | Material - Frame | Features | Noise | Termination | Current Rating (Amps) | Static Pressure | Static Pressure | Size / Dimension [y] | Size / Dimension [x] | RPM | Bearing Type | Voltage - Rated | Material - Blade | Weight | Weight | Voltage Range [Max] | Voltage Range [Min] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Width [y] | Ingress Protection | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 50000 Hrs | 132.6 CFM | 3.71 mł/min | CE CSA UL VDE | Tubeaxial | 32.4 W | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 65 dB | 3 Wire Leads | 1.35 A | 2.03 in H2O | 505.7 Pa | 80 mm | 80 mm | 9000 RPM | Ball | 24 VDC | Plastic | 205.02 g | 0.452 lb | 26.4 VDC | 14 VDC | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | ||
Delta Electronics | 50000 Hrs | 107.3 CFM | 3 m³/min | CE CSA UL VDE | Tubeaxial | 18.48 W | Plastic | 61 dB(A) | 2 Wire Leads | 770 mA | 1.368 in H2O | 340.8 Pa | 80 mm | 80 mm | 7500 RPM | Ball | 24 VDC | Plastic | 200.03 g | 0.441 lb | 26.4 VDC | 14 VDC | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | |||
Delta Electronics | 50000 Hrs | 132.6 CFM | 3.71 mł/min | CE CSA UL VDE | Tubeaxial | 32.4 W | Plastic | 65 dB | 2 Wire Leads | 1.35 A | 2.03 in H2O | 505.7 Pa | 80 mm | 80 mm | 9000 RPM | Ball | 24 VDC | Plastic | 205.02 g | 0.452 lb | 26.4 VDC | 14 VDC | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | |||
Delta Electronics | 50000 Hrs | 107.3 CFM | 3 m³/min | CE CSA UL VDE | Tubeaxial | 18.48 W | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 61 dB(A) | 3 Wire Leads | 770 mA | 1.368 in H2O | 340.8 Pa | 80 mm | 80 mm | 7500 RPM | Ball | 24 VDC | Plastic | 200.03 g | 0.441 lb | 26.4 VDC | 14 VDC | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | ||
Delta Electronics | 50000 Hrs | 107.3 CFM | 3 m³/min | CE CSA UL VDE | Tubeaxial | 18.48 W | Plastic | 61 dB(A) | 2 Wire Leads | 770 mA | 1.368 in H2O | 340.8 Pa | 80 mm | 80 mm | 7500 RPM | Ball | 24 VDC | Plastic | 200.03 g | 0.441 lb | 26.4 VDC | 14 VDC | -10 °C | -10 °C | 60 °C | 60 °C | 38 mm | IP55 - Dust Protected Water Resistant | ||
Delta Electronics | 50000 Hrs | 132.6 CFM | 3.71 mł/min | CE CSA UL VDE | Tubeaxial | 32.4 W | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 65 dB | 4 Wire Leads | 1.35 A | 2.03 in H2O | 505.7 Pa | 80 mm | 80 mm | 9000 RPM | Ball | 24 VDC | Plastic | 200.03 g | 0.441 lb | 27.6 VDC | 12 VDC | -20 C | -20 °C | 70 °C | 38 mm | 70 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.56 | |
| 10 | $ 40.52 | |||
| 25 | $ 36.47 | |||
| 90 | $ 33.43 | |||
| 180 | $ 31.40 | |||
| 270 | $ 27.35 | |||
Description
General part information
PFB0824 Series
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 107.3 CFM (3.00m³/min) 2 Wire Leads
