2907054
ActivePhoenix Contact

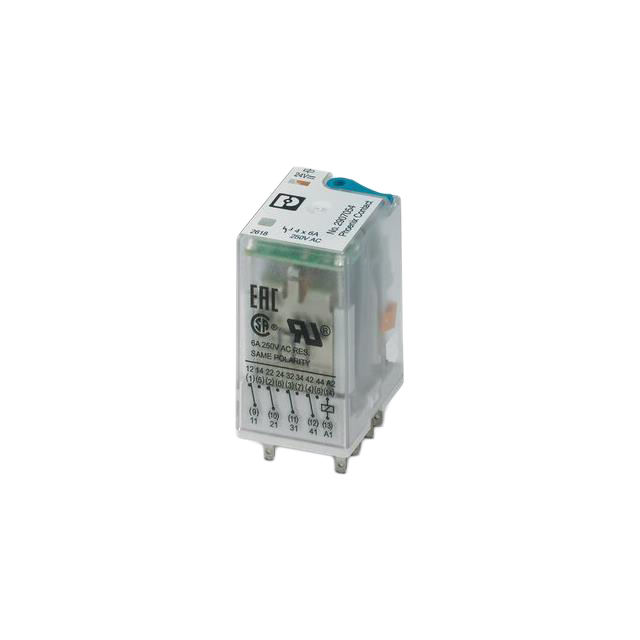

RELAY GEN PURPOSE 4PDT 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2907054
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 6A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2907054 |
|---|---|
| Approval Agency | VDE, UL, EAC, cULus |
| Coil Current | 38 mA |
| Coil Resistance | 630 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Mounting Type | Socketable |
| Operate Time | 13 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.06 | |
| 10 | $ 5.66 | |||
| 50 | $ 5.21 | |||
| 100 | $ 4.81 | |||
| 250 | $ 4.59 | |||
| 500 | $ 4.56 | |||
Description
General part information
29070 Series
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Documents
Technical documentation and resources
