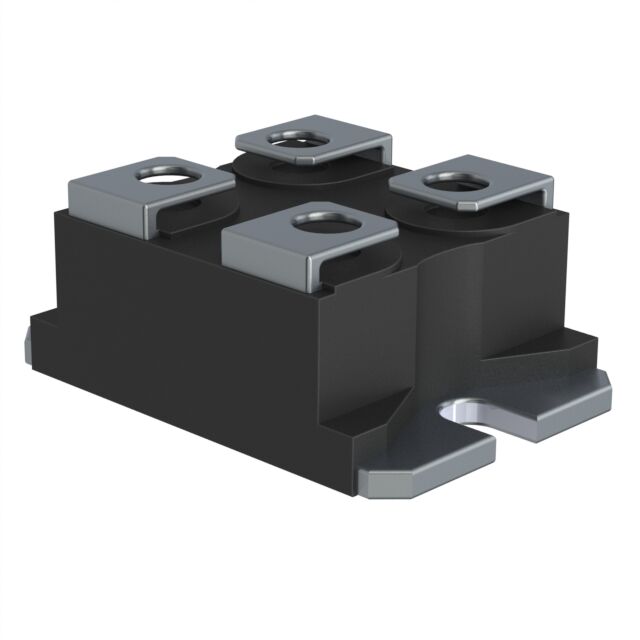

GSXD160A020S1-D3

Active

SemiQ

DIODE MOD SCHOT 200V 160A SOT227

Search across all available documentation for this part.

Active

SemiQ

DIODE MOD SCHOT 200V 160A SOT227

Technical Specifications

Parameters and characteristics for this part

Specification	GSXD160A020S1-D3

Current - Average Rectified (Io) (per Diode)	160 A
Current - Reverse Leakage @ Vr	3 mA
Diode Configuration	2 Independent
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	SOT-227-4, miniBLOC
Speed	200 mA, 500 ns
Supplier Device Package	SOT-227
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	920 mV

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Mounting Type
SemiQ GSXD160A012S1-D3	880 mV	SOT-227	SOT-227-4 miniBLOC	3 mA	120 V	Schottky	150 °C	-40 °C	200 mA 500 ns	160 A	2 Independent	Chassis Mount
SemiQ GSXD160A018S1-D3	920 mV	SOT-227	SOT-227-4 miniBLOC	3 mA	180 V	Schottky	150 °C	-40 °C	200 mA 500 ns	160 A	2 Independent	Chassis Mount
SemiQ GSXD160A010S1-D3	840 mV	SOT-227	SOT-227-4 miniBLOC	1 mA	100 V	Schottky	150 °C	-40 °C	200 mA 500 ns	160 A	2 Independent	Chassis Mount
SemiQ GSXD160A020S1-D3	920 mV	SOT-227	SOT-227-4 miniBLOC	3 mA	200 V	Schottky	150 °C	-40 °C	200 mA 500 ns	160 A	2 Independent	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	65	$ 30.78

General part information

Diode Array 2 Independent 200 V 160A Chassis Mount SOT-227-4, miniBLOC
