5280-4SG-518

Active

Conxall/Switchcraft

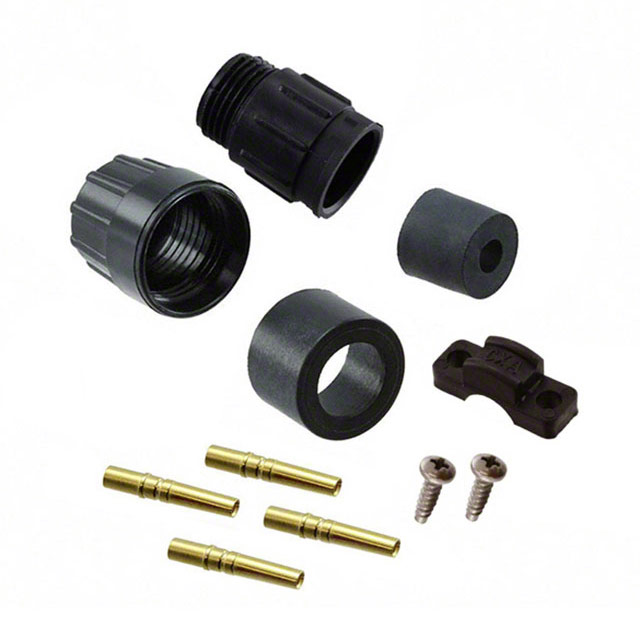

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5280-4SG-518

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5280-4SG-518

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

5280-4SG Series

Part	Current Rating (Amps)	Termination	Connector Type	Fastening Type	Color	Orientation	Backshell Material, Plating	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Features	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Primary Material	Contact Finish - Mating	Shielding	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5280-4SG-515	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell Cable Clamp	Weathertight	0.15 in 0.17 in	3.81 mm 4.32 mm	Plastic	Gold	Unshielded	Brass
Conxall/Switchcraft 5280-4SG-528	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell Cable Clamp	Weathertight			Plastic	Gold	Unshielded	Brass	7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 5280-4SG-315	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell	Weathertight	0.15 in 0.17 in	3.81 mm 4.32 mm	Plastic	Gold	Unshielded	Brass
Conxall/Switchcraft 5280-4SG-3DC	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell	Weathertight			Plastic	Gold	Unshielded	Brass
Conxall/Switchcraft 5280-4SG-318	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell	Weathertight			Plastic	Gold	Unshielded	Brass					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5280-4SG-518	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell Cable Clamp	Weathertight			Plastic	Gold	Unshielded	Brass					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5280-4SG-324	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell	Weathertight			Plastic	Gold	Unshielded	Brass	6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 5280-4SG-321	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell	Weathertight			Plastic	Gold	Unshielded	Brass	5.84 mm	5.33 mm	0.23 in	0.21 in
Conxall/Switchcraft 5280-4SG-328	5.6 A	Crimp	Receptacle Female Sockets	Bayonet Lock	Black	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	4	-40 °C	115 °C	600 V	Backshell	Weathertight			Plastic	Gold	Unshielded	Brass	7.37 mm	7.11 mm	0.29 in	0.28 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58
		10	$ 5.92
		25	$ 5.58
		50	$ 5.44
		100	$ 5.29
		300	$ 5.04

Description

General part information

5280-4SG Series

4 Position Circular Connector Receptacle, Female Sockets Crimp
