050R21-51B

Active

Parlex USA LLC

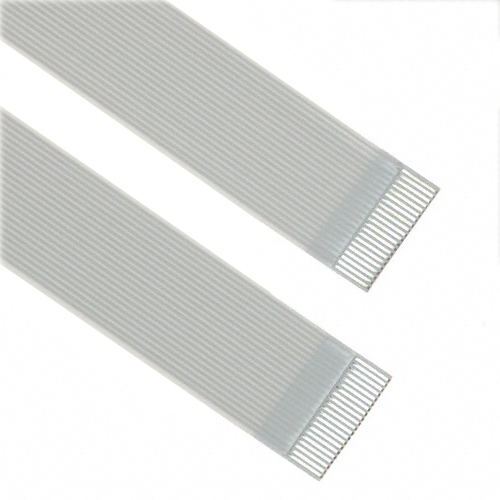

CABLE FFC/FPC 21POS 0.5MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 21POS 0.5MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	050R21-51B

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Number of Conductors	21
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length	Length	Cable Type	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style
Parlex USA LLC 050R21-51B	50.8 mm	2 in	FFC FPC	21	0.14 in	3.56 mm	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Parlex USA LLC 050R21-76B	76.2 mm	3 in	FFC FPC	21	0.14 in	3.56 mm	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Parlex USA LLC 050R21-127B	127 mm	5 in	FFC FPC	21	0.14 in	3.56 mm	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

21 Position FFC, FPC Cable 0.020" (0.50mm) 2.000" (50.80mm)

Technical documentation and resources
