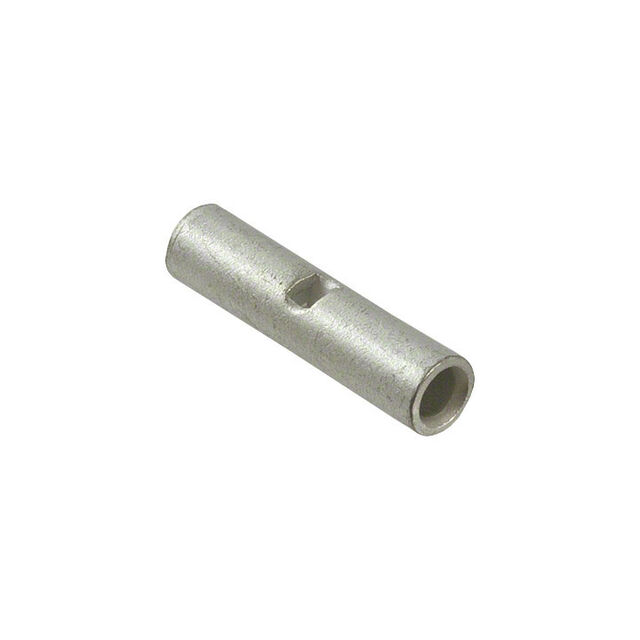

0192150018

Active

Molex

CONN SPLICE 14-16 AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN SPLICE 14-16 AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0192150018

Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp

Part	Number of Wire Entries	Terminal Type	Termination	Insulation	Color	Wire Gauge [Min]	Wire Gauge [Max]	Features	Wire Gauge	Number of Wire Entries
Molex 0192150018	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated
Molex 0192150023	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated	Blue	10 AWG 14 AWG	12 AWG 16 AWG	Step Up/Step Down
Molex 0192150252	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated		10 AWG	12 AWG	Brazed Seam
Molex 0192150027	2	Butt Splice Individual Openings Inline	Crimp	Fully Insulated	Blue	10 AWG 14 AWG	12 AWG 16 AWG	Step Up/Step Down
Molex 0192150046	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated					2 AWG
Molex 0192150028	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated		10 AWG	12 AWG
Molex 0192150049		Inline Individual Openings (Parallel)	Crimp	Non-Insulated						Varies by Wire Size
Molex 0192150034	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated					8 AWG
Molex 0192150042	2	Butt Splice Individual Openings Inline	Crimp	Non-Insulated	Red	6 AWG	8 AWG	Step Up/Step Down
Molex 0192150008

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 14-16 AWG

Technical documentation and resources

No documents available
