341-041-524-104
ActiveEDAC Inc.

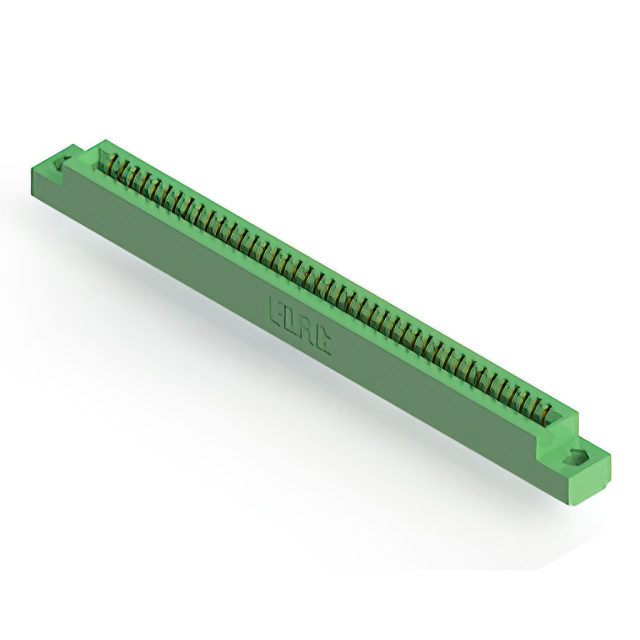

CARD EDGE CONNECTOR, 41 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
341-041-524-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 41 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-041-524-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 41 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
341-041 Series
| Part | Pitch [x] | Pitch [x] | Termination | Flange Feature | Mounting Type | Read Out | Card Type | Contact Finish | Contact Material | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Material - Insulation | Gender | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Floating Bobbin Flush Mount | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.116 in | 2.95 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.156 in | 3.96 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Floating Bobbin Flush Mount | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.116 in | 2.95 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | |||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Flush Mount Top Opening Unthreaded | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.156 in | 3.96 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | Flush Mount Top Opening Unthreaded | Through Hole | Single | Non Specified - Single Edge | Gold | Copper Alloy | 41 | Green | 10 Áin | 0.25 Ám | 1 | Polyester Thermoplastic | Female | Semi Bellows | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.156 in | 3.96 mm |
