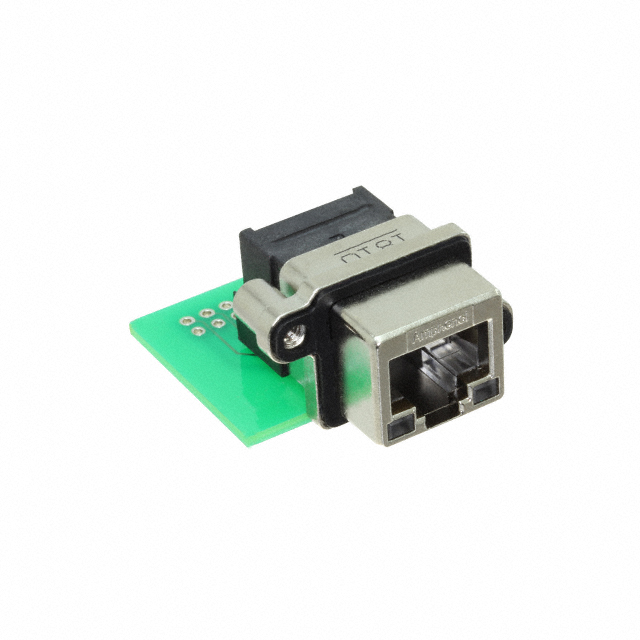

MRJ5A8001
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRJ5A8001
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRJ5A8001 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Board Mounted |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.95 | |
| 10 | $ 18.15 | |||
| 25 | $ 17.20 | |||
| 50 | $ 16.96 | |||
| 100 | $ 14.96 | |||
| 250 | $ 13.96 | |||
| 500 | $ 13.66 | |||
Description
General part information
MRJ5 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
