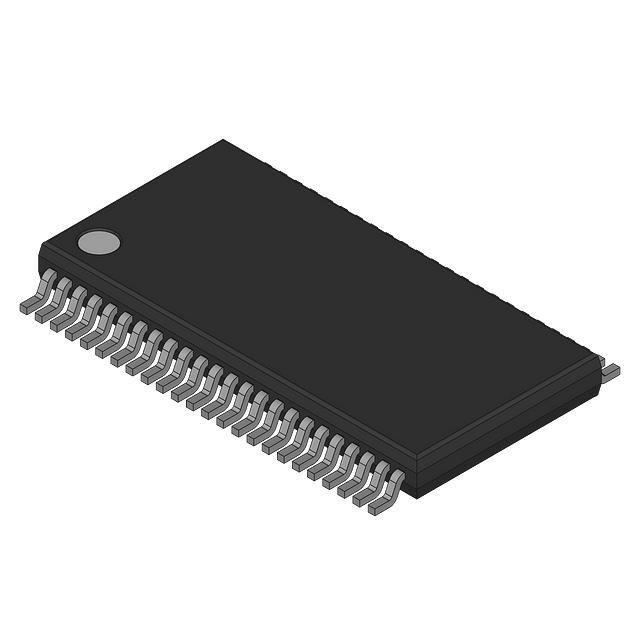

74ALVCH16374DGG112

Active

Freescale Semiconductor - NXP

NOW NEXPERIA 74ALVCH16374DGG - B

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

NOW NEXPERIA 74ALVCH16374DGG - B

Technical Specifications

Parameters and characteristics for this part

Specification	74ALVCH16374DGG112

Clock Frequency	350 MHz
Current - Output High, Low	24 mA
Function	Standard
Input Capacitance	5 pF
Max Propagation Delay @ V, Max CL	3.4 ns
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Tri-State, Non-Inverted
Package / Case	48-TFSOP
Package / Case	0.24 in
Package / Case [custom]	6.1 mm
Supplier Device Package	48-TSSOP
Trigger Type	Positive Edge
Type	D-Type
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.2 V

Part	Number of Elements	Operating Temperature [Max]	Operating Temperature [Min]	Max Propagation Delay @ V, Max CL	Package / Case	Package / Case	Package / Case [custom]	Clock Frequency	Number of Bits per Element	Current - Output High, Low	Function	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Capacitance	Type	Supplier Device Package	Output Type	Trigger Type
Freescale Semiconductor - NXP 74ALVCH16374DGG112	2	85 °C	-40 °C	3.4 ns	48-TFSOP	0.24 in	6.1 mm	350 MHz	8	24 mA	Standard	Surface Mount	1.2 V	3.6 V	5 pF	D-Type	48-TSSOP	Non-Inverted Tri-State	Positive Edge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	556	$ 0.54

General part information

Flip Flop 2 Element D-Type 8 Bit Positive Edge 48-TFSOP (0.240", 6.10mm Width)
