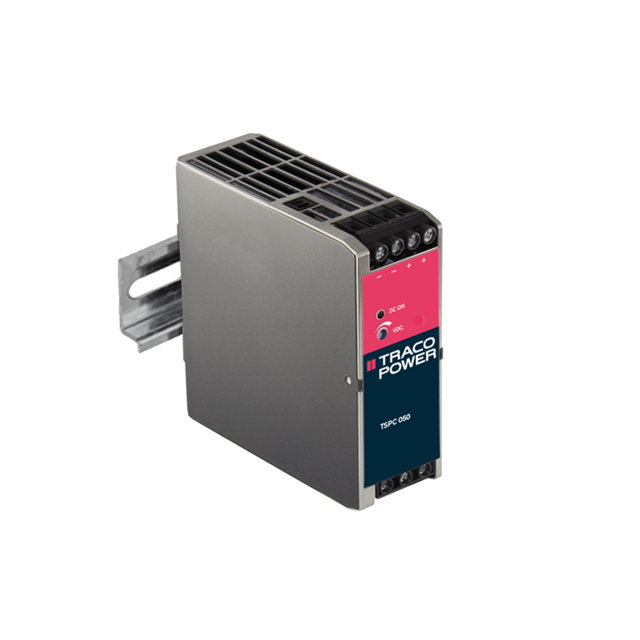

TSPC 050-124

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 50W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	TSPC 050-124

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, CB
Current - Output (Max) [Max]	2.1 A
Efficiency	93 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	50 W
Size / Dimension [x]	3.56 in
Size / Dimension [x]	90.4 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	110 mm
Size / Dimension [z]	4.33 in
Voltage - Output 1	24 V

Part	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Applications	Input Type	Efficiency	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]
Traco Power TSPC 050-124	24 V	85 VAC	264 VAC	36.8 mm	110 mm	4.33 in	3.56 in	90.4 mm	1.45 in	Adjustable Output IP20 Universal Input	1	50 W	2.1 A	Hazardous Locations Industrial ITE (Commercial)	AC	93 %	CB CE	-25 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 50W
