1703975

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 6 POS 10.16MM PITCH FEED THRU INVERT HDR

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 6 POS 10.16MM PITCH FEED THRU INVERT HDR

Technical Specifications

Parameters and characteristics for this part

Specification	1703975

Color	Green
Current - UL	55 A
Features	Shield Connection Feedthrough, Threaded Mating Lock
Front Panel Wire Connection	Header, Female Sockets
Number of Levels	1
Panel Mount Type	2 Piece, Snap Lock - Front Flange
Panel Thickness	3 mm, 1 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Pitch [x]	10.16 mm
Pitch [x]	0.4 in
Positions Per Level	6
Rear Panel Wire Connection	PCB Pins - Right Angle
Width [y]	4.017 in
Width [y]	102.03 mm
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	6 AWG

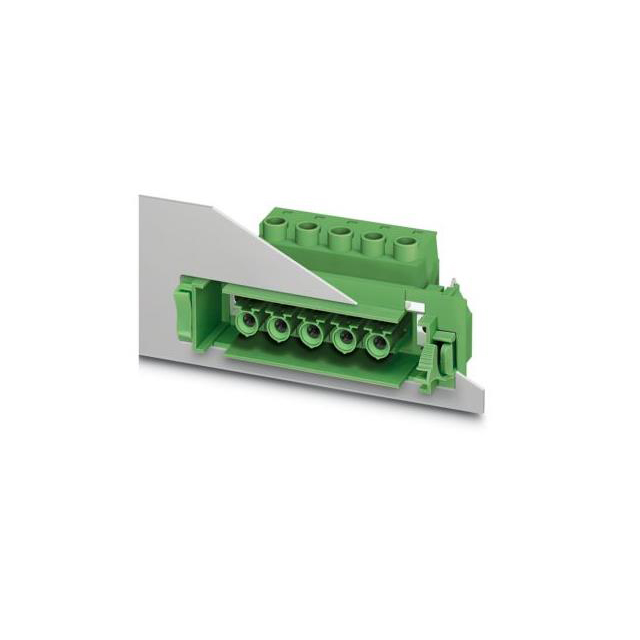

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Feed Thru Invert Hdr

Part	Current - UL	Front Panel Wire Connection	Positions Per Level	Number of Levels	Pitch [x]	Pitch [x]	Width [y]	Width [y]	Panel Mount Type	Wire Gauge [Max]	Wire Gauge [Min]	Features	Rear Panel Wire Connection	Panel Thickness [Max]	Panel Thickness	Panel Thickness [Min]	Color
Phoenix Contact 1703975	55 A	Female Sockets Header	6	1	10.16 mm	0.4 in	4.017 in	102.03 mm	2 Piece Snap Lock - Front Flange	20 AWG	6 AWG	Shield Connection Feedthrough Threaded Mating Lock	PCB Pins - Right Angle	0.118 in	1 mm 3 mm	0.039 in	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Feed Thru Invert Hdr
