H2174-05

Active

Harwin Inc.

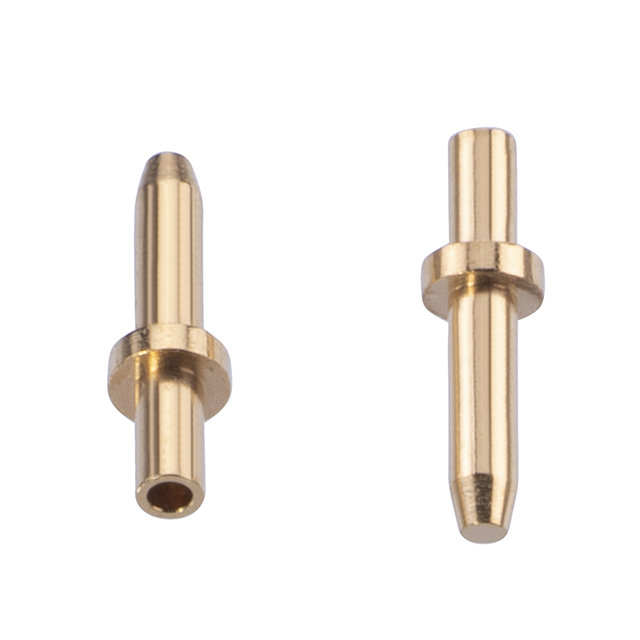

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2174-05

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Gold
Contact Material	Brass
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Insulation	Non-Insulated
Length - Above Flange [x]	3.81 mm
Length - Above Flange [x]	0.15 in
Length - Below Flange [x]	0.082 in
Length - Below Flange [x]	2.08 mm
Length - Overall [x]	0.252 in
Length - Overall [x]	6.4 mm
Mounting Hole Diameter [Max]	0.045 "
Mounting Hole Diameter [Max]	1.14 mm
Mounting Hole Diameter [Min]	0.041 in
Mounting Hole Diameter [Min]	1.04 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.041 in
Pin Size - Above Flange [diameter]	1.04 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Termination	Insulation	Contact Finish	Mounting Type	Terminal Style	Contact Material	Length - Above Flange [x]	Length - Above Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Type	Board Thickness	Board Thickness	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Overall [x]	Length - Overall [x]	Length - Below Flange [x]	Length - Below Flange [x]
Harwin Inc. H2174-05	0.045 "	1.14 mm	0.041 in	1.04 mm	Swage	Non-Insulated	Gold	Through Hole	Single End	Brass	3.81 mm	0.15 in	1.77 mm	0.07 in	PC Pin	1.6 mm	0.063 in	0.041 in	1.04 mm	0.252 in	6.4 mm	0.082 in	2.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia
