TT92N16KOFHPSA1

Active

Infineon Technologies

1600 V, 92 A POWER BLOCK 20 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES

Search across all available documentation for this part.

Active

Infineon Technologies

1600 V, 92 A POWER BLOCK 20 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES

Technical Specifications

Parameters and characteristics for this part

Specification	TT92N16KOFHPSA1

Current - Gate Trigger (Igt) (Max) [Max] [x]	120 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2050 A
Current - On State (It (AV)) (Max) [Max]	104 A
Current - On State (It (RMS)) (Max)	160 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	1.4 V
Voltage - Off State	1.6 kV

Part	Number of SCRs, Diodes	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	Current - On State (It (RMS)) (Max)	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max] [x]	Current - Hold (Ih) (Max) [Max]	Structure	Voltage - Off State	Operating Temperature
Infineon Technologies TT92N16KOFHPSA1	2 SCRs	-40 °C	130 °C	Module	2050 A	Chassis Mount	160 A	104 A	1.4 V	120 mA	200 mA	Series Connection - All SCRs	1.6 kV
Infineon Technologies TT92N16KOFKHPSA1	2 SCRs	-40 °C	130 °C	Module	2050 A	Chassis Mount	160 A	104 A	1.4 V	120 mA	200 mA	Common Cathode - All SCRs	1.6 kV
Infineon Technologies TT92N12KOFB4HPSA1	2 SCRs	-40 °C	130 °C	Module	2050 A	Chassis Mount	160 A	104 A	1.4 V	120 mA	200 mA	Series Connection - All SCRs	1.2 kV
Infineon Technologies TT92N16KOFHPSA2	2 SCRs			Module	2050 A	Chassis Mount	160 A	104 A	1.4 V	120 mA	200 mA	Series Connection - All SCRs	1.6 kV	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

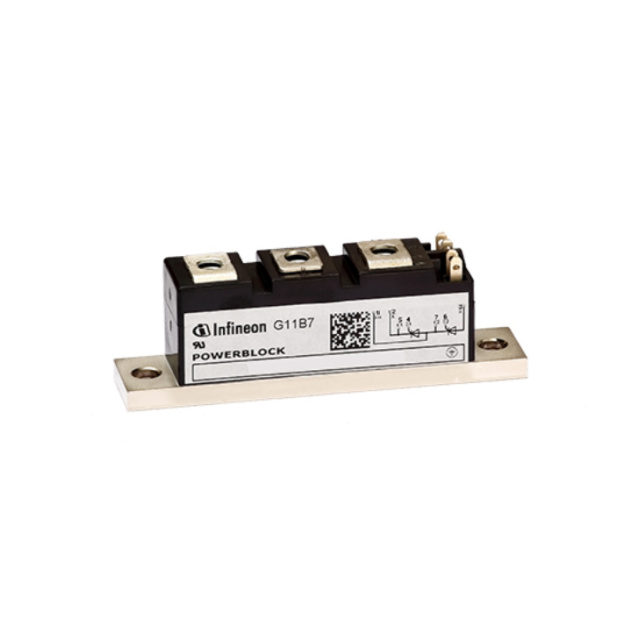

Thyristor/Thyristor 20 mm Power Block 1600 V, 92 A module for phase control inpressure contact technologyusing an isolated copper base plate.
