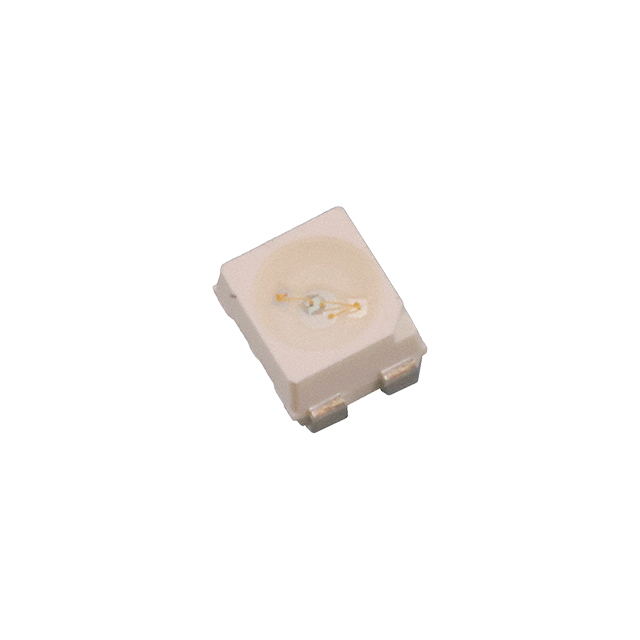

HSMN-A400-S4QM2
ActiveBroadcom Limited
LED BLUE CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMN-A400-S4QM2
ActiveBroadcom Limited
LED BLUE CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMN-A400-S4QM2 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.2 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 315 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.8 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 0.98 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.59 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 0.98 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.59 | |||
| Tape & Reel (TR) | 2000 | $ 0.48 | ||
| 4000 | $ 0.46 | |||
| 6000 | $ 0.44 | |||
| 10000 | $ 0.44 | |||
Description
General part information
HSMN-A400 Series
Blue 470nm LED Indication - Discrete 3.8V 4-PLCC
