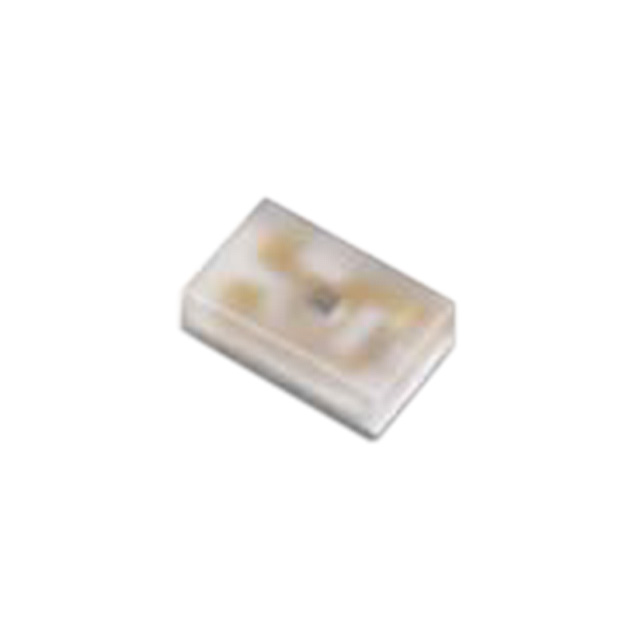

ATS2012UV395
ObsoleteKingbright
LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATS2012UV395
ObsoleteKingbright
LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS2012UV395 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 30 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0805 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength | 395 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ATS2012 Series
Ultraviolet (UV) Emitter 395nm 3.3V 30mA 150° 0805 (2012 Metric)
