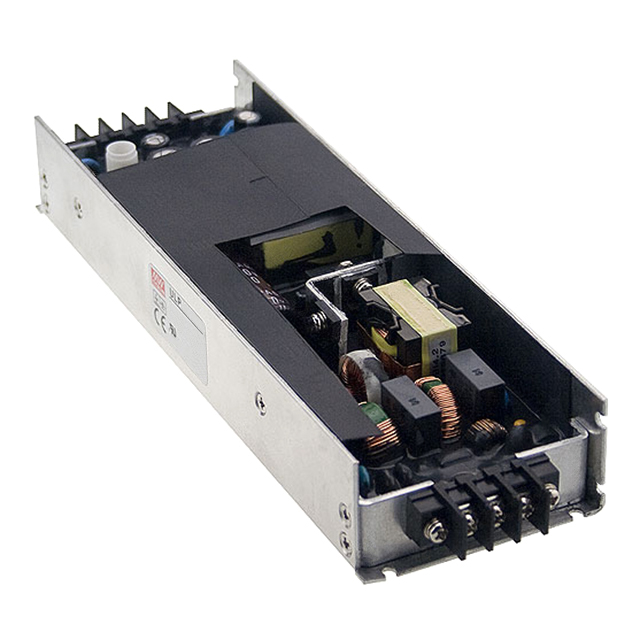

ULP-150-15

Obsolete

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 150W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	ULP-150-15

Approval Agency	CE
Current - Output 1	10 A
Efficiency	91.5 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	150 W
Size / Dimension [x]	215 mm
Size / Dimension [x]	8.46 "
Size / Dimension [y]	2.65 in
Size / Dimension [y]	67.4 mm
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Type	Open Frame
Voltage - Input [Max]	417 VDC, 295 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3750 V
Voltage - Output 1	15 V

Part	Power (Watts)	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Minimum Load Required	Mounting Type	Number of Outputs	Features	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation
MEAN WELL USA Inc. ULP-150-15	150 W	10 A	70 °C	-30 °C	CE	91.5 %		Chassis Mount	1	Adjustable Output PFC Universal Input	Open Frame	90 VAC 127 VDC	295 VAC 417 VDC	15 V	215 mm	8.46 "	1.3 "	2.65 in	33 mm	67.4 mm	3750 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 68.23

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 295 VAC, 127 ~ 417 VDC Input
