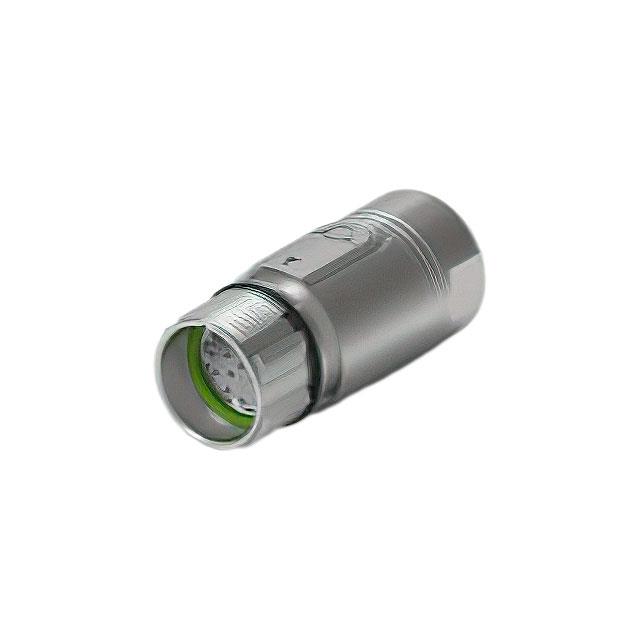

AKA015N00400200000

Active

TE Intercontec

CONN RCPT HSG MALE 17POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AKA015N00400200000

Active

TE Intercontec

CONN RCPT HSG MALE 17POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKA015N00400200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Male Pins

AKA01 Series

Part	Ingress Protection	Mounting Type	Mounting Feature	Housing Color	Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Fastening Type	Connector Type	Note	Shell Size - Insert	Features	Shell Material	Number of Positions	Orientation	Shell Finish	Includes	Material Flammability Rating	Shielding
TE Intercontec AKA013N00410240000	IP66/IP67	Free Hanging (In-Line) Panel Mount	Bulkhead - Front Side Nut	Silver	For Male Pins	Polybutylene Terephthalate (PBT)	-20 C	130 °C	Circular	Push-Twist	Receptacle Housing	Contacts Not Included	M23-12	Backshell Cable Clamp	Zinc Die Cast	12	Keyed	Nickel	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	UL94 V-0	Shielded
TE Intercontec AKA015N00400200000	IP66/IP67	Free Hanging (In-Line)		Silver	For Male Pins	Polybutylene Terephthalate (PBT)	-20 C	130 °C	Circular	Push-Twist	Receptacle Housing	Contacts Not Included	M23-17	Backshell Cable Clamp	Zinc Die Cast		Keyed	Nickel	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	Shielded
TE Intercontec AKA013N00400200000	IP66/IP67	Free Hanging (In-Line)		Silver	For Male Pins	Polybutylene Terephthalate (PBT)	-20 C	130 °C	Circular	Push-Twist	Receptacle Housing	Contacts Not Included	M23-12	Backshell Cable Clamp	Zinc Die Cast	12	Keyed	Nickel	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	Shielded
TE Intercontec AKA012N00410100000	IP66/IP67	Free Hanging (In-Line)		Silver	For Male Pins	Polybutylene Terephthalate (PBT)	-20 C	130 °C	Circular	Push-Twist	Receptacle Housing	Contacts Not Included	M23-12	Backshell Cable Clamp	Zinc Die Cast	12	Keyed	Nickel	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	Shielded
TE Intercontec AKA012N00390100000	IP66/IP67	Free Hanging (In-Line)		Silver	For Male Pins	Polybutylene Terephthalate (PBT)	-20 C	130 °C	Circular	Push-Twist	Receptacle Housing	Contacts Not Included	M23-12	Backshell Cable Clamp	Zinc Die Cast	12	Keyed	Nickel	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.62
		10	$ 22.08
		25	$ 20.00
		50	$ 18.60
		100	$ 17.33
		250	$ 15.83
		500	$ 14.82

Description

General part information

AKA01 Series

17 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
