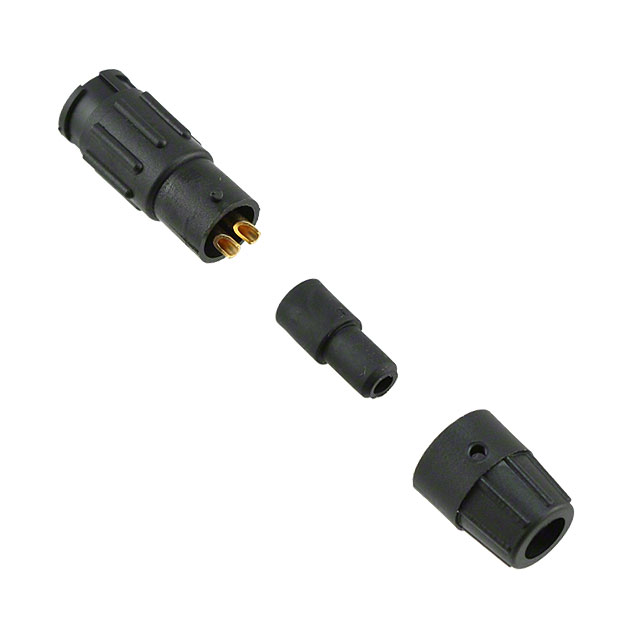

18282-2SG-311
ActiveConxall/Switchcraft
CONN RCPT FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
18282-2SG-311
ActiveConxall/Switchcraft
CONN RCPT FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 18282-2SG-311 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [diameter] | 2.29 mm |
| Cable Opening [diameter] | 0.14 in, 0.09 in |
| Cable Opening [diameter] | 3.56 mm |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.83 | |
| 10 | $ 7.95 | |||
| 25 | $ 7.49 | |||
| 50 | $ 7.30 | |||
| 100 | $ 7.11 | |||
| 300 | $ 6.34 | |||
| 500 | $ 5.95 | |||
| 1000 | $ 5.26 | |||
Description
General part information
18282-2S Series
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
