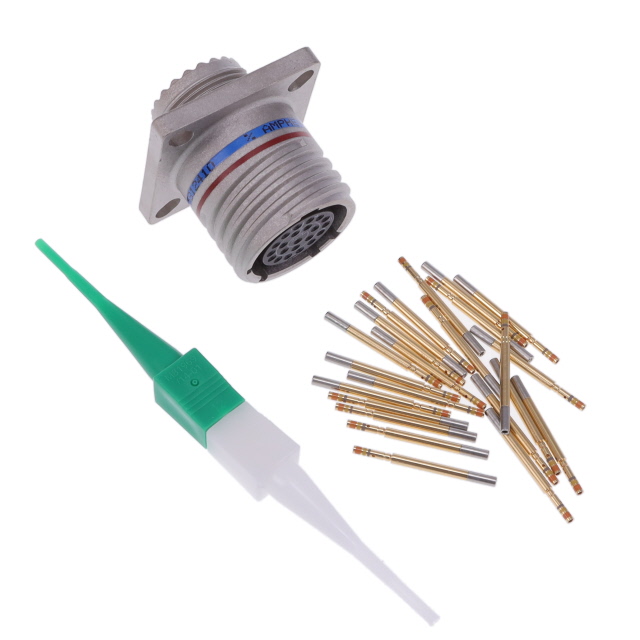

D38999/20MC35SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20MC35SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20MC35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/20MC Series

Part	Mounting Feature	Primary Material	Contact Finish - Mating	Shielding	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Shell Size, MIL	Grade	Qualification	Color	Connector Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Termination	Number of Positions	Shell Finish	Orientation	Shell Size - Insert	Contact Shape	Type	Note	Contact Type	Contact Size	Housing Color
Amphenol Aerospace Operations D38999/20MC35JA	Flange	Composite	Gold	Shielded	Environment Resistant	2.54 çm	100 çin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Receptacle Female Sockets	Aerospace Aviation Military	-65 ░C	200 °C	Copper Alloy	35	13	Crimp	22 positions	Electroless Nickel	A
Amphenol Aerospace Operations D38999/20MC98JA	Flange	Composite	Gold	Shielded	Environment Resistant	2.54 çm	100 çin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Receptacle Female Sockets	Aerospace Aviation Military	-65 ░C	200 °C	Copper Alloy			Crimp	10	Electroless Nickel	A
Amphenol Aerospace Operations D38999/20MC35HA	Flange	Composite	Gold	Shielded	Environment Resistant	2.54 çm	100 çin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Male Pins Receptacle	Aerospace Aviation Military	-65 ░C	200 °C	Copper Alloy	35	13	Crimp	22 positions	Electroless Nickel	A
Amphenol Aerospace Operations D38999/20MC4SC	Flange	Composite	Gold	Shielded	Environment Resistant	1.27 µm	50 µin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Receptacle Female Sockets	Aviation Marine Military	-65 ░C	200 °C	Copper Alloy			Crimp	4	Electroless Nickel	C	13-4
Amphenol Aerospace Operations D38999/20MC35SN	Flange	Composite	Gold	Shielded	Environment Resistant	1.27 µm	50 µin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Receptacle Female Sockets	Aerospace Aviation Marine Military	-65 ░C	200 °C	Copper Alloy	35	13	Crimp	22 positions	Electroless Nickel	N
Amphenol Aerospace Operations D38999/20MC4SD	Flange	Composite	Gold	Shielded	Environment Resistant	1.27 µm	50 µin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Receptacle Female Sockets	Aviation Marine Military	-65 ░C	200 °C	Copper Alloy			Crimp	4	Electroless Nickel	D	13-4
Amphenol Aerospace Operations D38999/20MC98JB	Flange	Composite	Gold	Shielded	Environment Resistant	2.54 çm	100 çin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Receptacle Female Sockets	Aviation Marine Military	-65 ░C	200 °C	Copper Alloy			Crimp	10	Electroless Nickel	B
Amphenol Aerospace Operations D38999/20MC98HB-LC	Flange			Shielded	Environment Resistant			Composite	C	Military	MIL-DTL-38999 Series III		Receptacle Housing		-65 ░C	200 °C					10	Electroless Nickel	B		Circular	For Male Pins	Contacts Not Included	Crimp	20	Silver
Amphenol Aerospace Operations D38999/20MC8HD	Flange	Composite	Gold	Shielded	Environment Resistant	2.54 çm	100 çin	Composite	C	Military	MIL-DTL-38999 Series III	Silver	Male Pins Receptacle	Aviation Marine Military	-65 ░C	200 °C	Copper Alloy			Crimp	8	Electroless Nickel	D	13-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 112.38
		1	$ 187.84
		2	$ 184.37
		4	$ 180.88
		8	$ 177.40
		10	$ 87.53
		25	$ 79.67
		50	$ 74.37
		100	$ 69.58

Description

General part information

D38999/20MC Series

22 Position Circular Connector Receptacle, Female Sockets Crimp
