SJ5-43502PM
ActiveCUI Devices

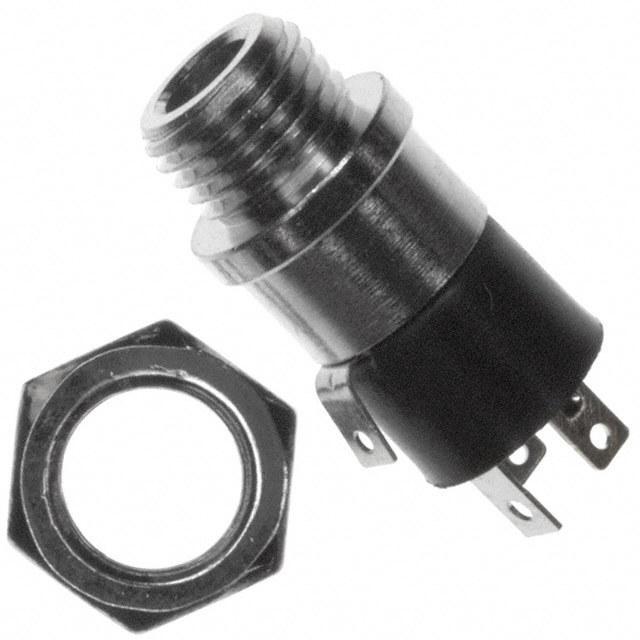

CONN JACK 4COND 3.5MM PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJ5-43502PM
ActiveCUI Devices
CONN JACK 4COND 3.5MM PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJ5-43502PM |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Silver, Black |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 1 A |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Number of Positions/Contacts [custom] | 4 |
| Number of Positions/Contacts [custom] | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Panel Hole Size | 7 mm |
| Panel Hole Size | 0.276 in |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
