031-6359

Active

Amphenol RF

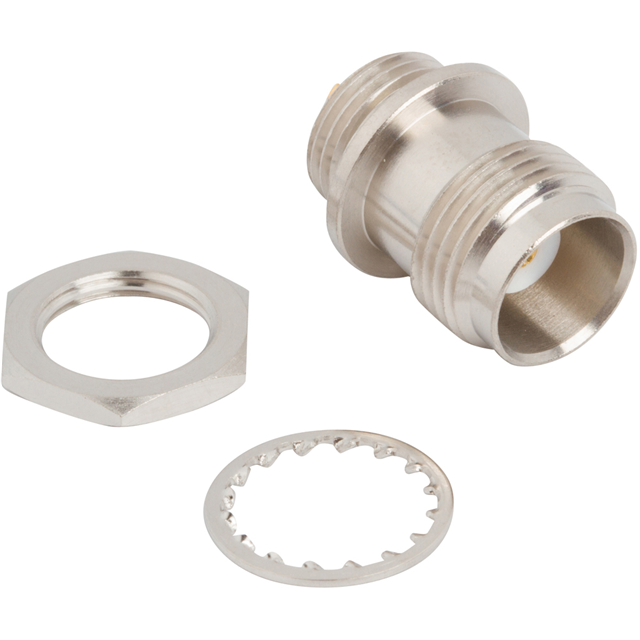

TNC STRAIGHT JACK, SOLDER CUP, B

Search across all available documentation for this part.

Active

Amphenol RF

TNC STRAIGHT JACK, SOLDER CUP, B

Technical Specifications

Parameters and characteristics for this part

Specification	031-6359

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Impedance	Contact Termination	Center Contact Plating	Mating Cycles	Connector Type	Body Finish	Center Contact Material	Frequency - Max [Max]	Includes	Dielectric Material	Shield Termination	Body Material	Number of Ports	Housing Color	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style
Amphenol RF 031-6359	50 Ohms	Solder Cup	Gold	500	Female Socket Jack	Nickel	Beryllium Copper	2 GHz	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	Solder	Brass	1	Silver	Bulkhead - Rear Side Nut	-40 °C	155 °C	TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.39

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
