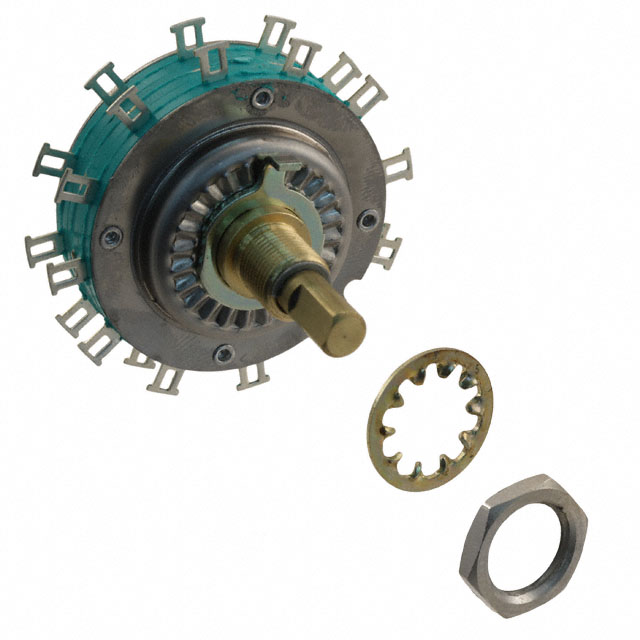

ROTARY SWITCH, 23 POSITION, 1 POLE, 15 °, 500 MA, 125 V, C7 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
C7D0123N
ActiveELECTROSWITCH
ROTARY SWITCH, 23 POSITION, 1 POLE, 15 °, 500 MA, 125 V, C7 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C7D0123N |
|---|---|
| Actuator Length [x] | 14.29 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 15 ° |
| Circuit per Deck | SP23T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 500 mA, 1 A |
| Depth Behind Panel | 20.6 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 23 |
| Panel Cutout Dimensions [diameter] | 9.78 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.22 | |
| 5 | $ 51.73 | |||
| 10 | $ 48.44 | |||
| 25 | $ 44.39 | |||
| 50 | $ 41.53 | |||
| 100 | $ 38.85 | |||
| 250 | $ 36.88 | |||
Description
General part information
C7D0123 Series
The C7 series Rotary Switch provides a fully enclosed, modular design that enables switching up to 24 positions. The design offers 15° standard, 30°, 60°, 90° indexing angles and solder-lug terminals. It has lowest practical torque consistent with crisp detenting and smooth, reliable operation.
