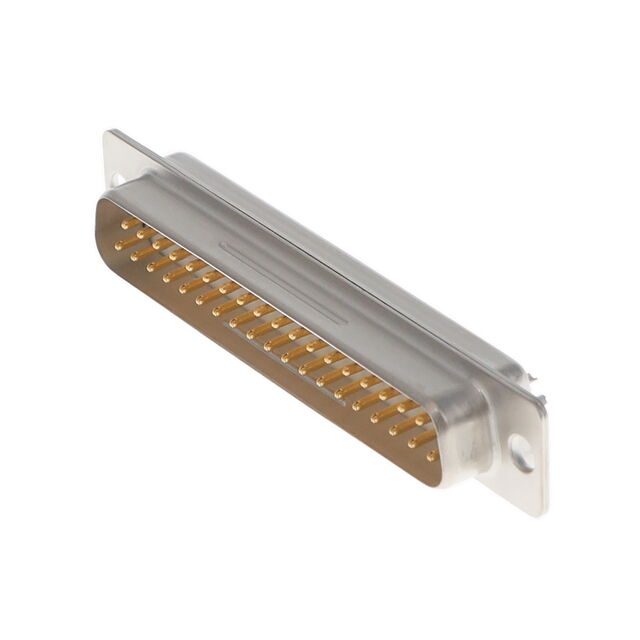

XM3A-3721
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 37POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
XM3A-3721
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 37POS SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM3A-3721 |
|---|---|
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.16 | |
| 10 | $ 27.16 | |||
| 25 | $ 24.63 | |||
| 40 | $ 23.44 | |||
| 80 | $ 21.84 | |||
| 230 | $ 19.68 | |||
| 440 | $ 18.51 | |||
Description
General part information
XM3A Series
37 Position D-Sub Plug, Male Pins Connector
