LXES1TBAA4-005

Obsolete

Murata Power Solutions Inc.

TRANS VOLTAGE SUPPRESSOR DIODE, UNIDIRECTIONAL, 1 ELEMENT, SILICON, ROHS COMPLIANT PACKAGE-6

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

TRANS VOLTAGE SUPPRESSOR DIODE, UNIDIRECTIONAL, 1 ELEMENT, SILICON, ROHS COMPLIANT PACKAGE-6

Technical Specifications

Parameters and characteristics for this part

Specification	LXES1TBAA4-005

Applications	General Purpose
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

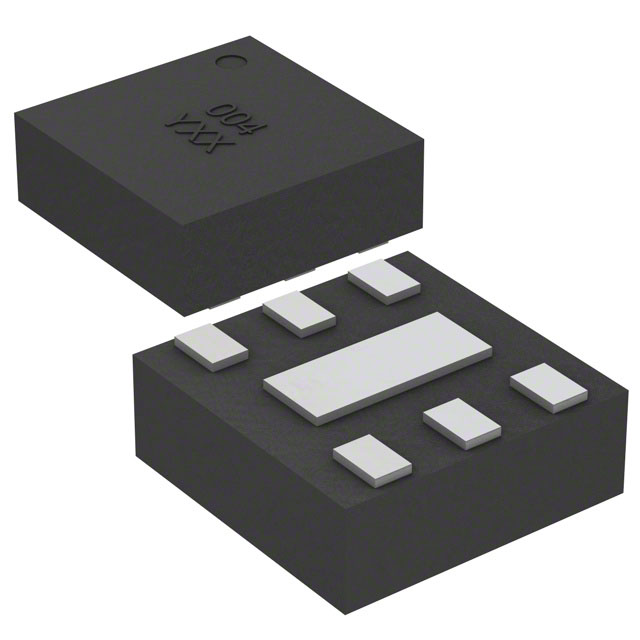

Package / Case	6-UFDFN Exposed Pad
Power Line Protection	True
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Reverse Standoff (Typ)	5.5 V

Part	Mounting Type	Unidirectional Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Reverse Standoff (Typ)	Power Line Protection	Type	Voltage - Breakdown (Min) [Min]	Package / Case	Applications	Unidirectional Channels	Supplier Device Package
Murata Power Solutions Inc. LXES1TBAA4-005	Surface Mount	4	85 °C	-40 °C	5.5 V		Steering	6 V	6-UFDFN Exposed Pad	General Purpose
Murata Power Solutions Inc. LXES1TBCC2-004	Surface Mount		85 °C	-40 °C	5.5 V		Steering	6 V	6-UFDFN Exposed Pad	General Purpose	2	6-SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clamp Ipp Tvs Diode Surface Mount
