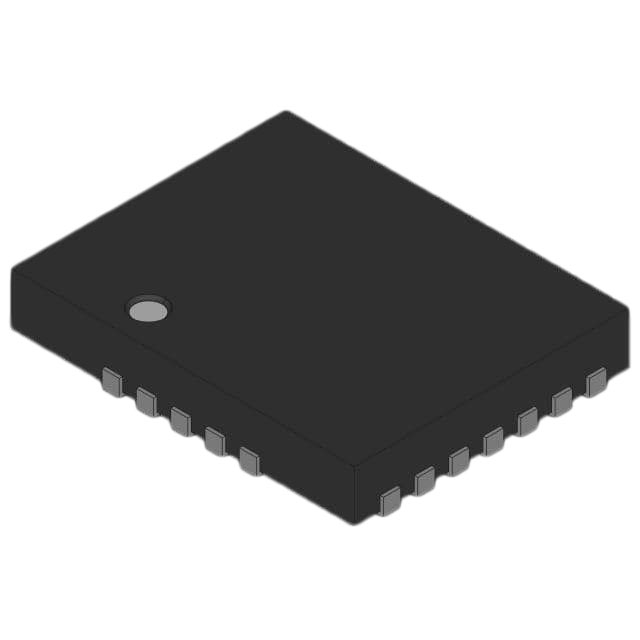

SN74ACT7201LA20R2

Active

Texas Instruments

IC FIFO ASYNC 512X9

Deep-Dive with AI

Search across all available documentation for this part.

SN74ACT7201LA20R2

Active

Texas Instruments

IC FIFO ASYNC 512X9

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SN74ACT7201LA20R2

null

74ACT7201 Series

Part	Expansion Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Access Time	Supplier Device Package	Bus Directional	Current - Supply (Max) [Max]	Memory Size	Mounting Type	Data Rate	Package / Case	Package / Case
Texas Instruments SN74ACT7201LA20R2
Texas Instruments SN74ACT7201LA50RJ	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	32-LCC (J-Lead)	50 ns	32-PLCC	Uni-Directional	80 mA	4.5 K	Surface Mount	15 MHz
Texas Instruments SN74ACT7201LA25NP	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	28-DIP	25 ns	28-DIP	Uni-Directional	125 mA	4.5 K	Through Hole	28.5 MHz	0.3 in	7.62 mm
Texas Instruments SN74ACT7201LA25DVR	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	28-SOIC	25 ns	28-SOIC	Uni-Directional	125 mA	4.5 K	Surface Mount	28.5 MHz
Texas Instruments SN74ACT7201LA25RJR
Texas Instruments SN74ACT7201LA50RJR
Texas Instruments SN74ACT7201LA35RJ	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	32-LCC (J-Lead)	35 ns	32-PLCC	Uni-Directional	80 mA	4.5 K	Surface Mount	22.22 MHz
Texas Instruments SN74ACT7201LA15NP	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	28-DIP	15 ns	28-DIP	Uni-Directional	125 mA	4.5 K	Through Hole	40 MHz	0.3 in	7.62 mm
Texas Instruments SN74ACT7201LA15RJR	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	32-LCC (J-Lead)	15 ns	32-PLCC	Uni-Directional	125 mA	4.5 K	Surface Mount	40 MHz
Texas Instruments SN74ACT7201LA25RJ	Depth Width	4.5 V	5.5 V	Asynchronous	70 °C	0 °C	32-LCC (J-Lead)	25 ns	32-PLCC	Uni-Directional	125 mA	4.5 K	Surface Mount	28.5 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	72	$ 4.17

Description

General part information

74ACT7201 Series

FIFO

Documents

Technical documentation and resources

No documents available
