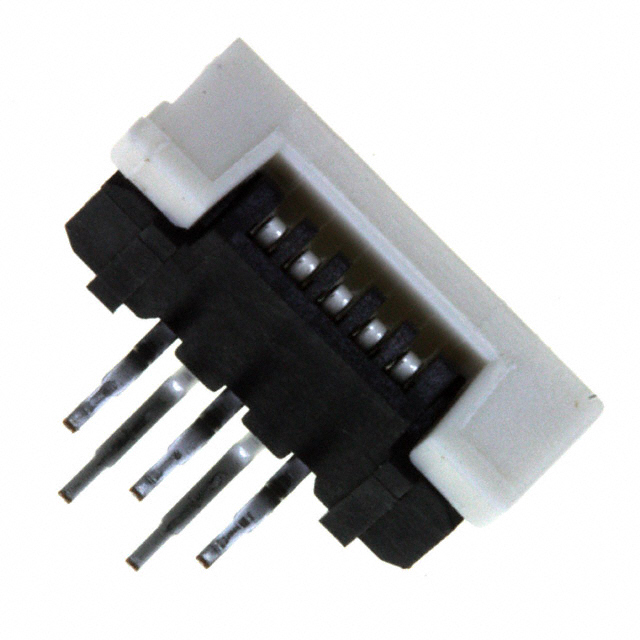

SLW5R-5C7LF

Obsolete

Amphenol ICC (FCI)

CONN CIC BOTTOM 5POS 1MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN CIC BOTTOM 5POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SLW5R-5C7LF

Actuator Color	White
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
Flat Flex Type	CIC
Height Above Board [z]	4 mm
Height Above Board [z]	0.157 "
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Material	Contact Finish	Actuator Material	Termination	FFC, FCB Thickness	Actuator Color	Material Flammability Rating	Housing Material	Voltage Rating	Housing Color	Locking Feature	Mating Cycles	Cable End Type	Flat Flex Type	Connector/Contact Type
Amphenol ICC (FCI) SLW5R-5C7LF	Through Hole Right Angle	4 mm	0.157 "	85 °C	-55 °C	0.039 in	1 mm	Phosphor Bronze	Tin	Glass Filled Nylon Polyamide (PA)	Kinked Pin	0.3 mm	White	UL94 V-0	Polyamide (PA) Nylon Glass Filled	100 V	Black	Slide Lock	20	Tapered	CIC	Contacts Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position CIC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle
