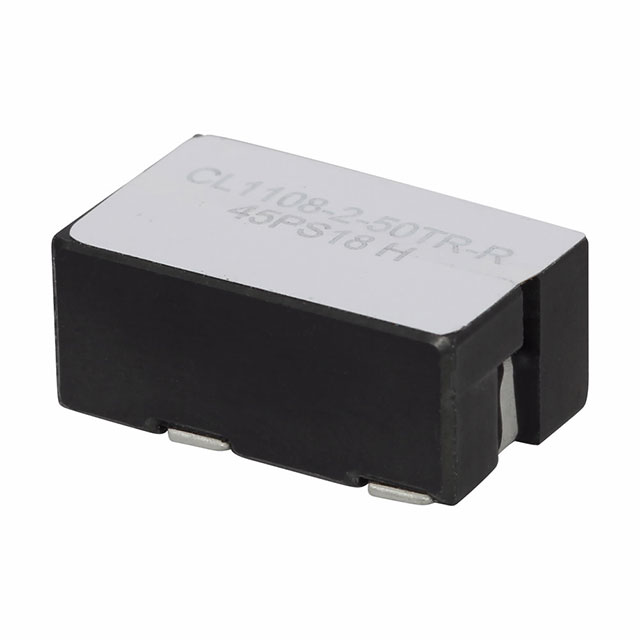

CLB1108-2-50TR-R
ActiveEaton - Electronics Division
FIXED IND 200NH 0.00028OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLB1108-2-50TR-R
ActiveEaton - Electronics Division
FIXED IND 200NH 0.00028OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLB1108-2-50TR-R |
|---|---|
| DC Resistance (DCR) | 0.28 mOhm |
| Features | 2 Phase |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension [x] | 0.709 ", 18 mm |
| Size / Dimension [y] | 0.433 in, 11 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.24 | |
| 10 | $ 5.62 | |||
| 25 | $ 5.08 | |||
| 50 | $ 4.70 | |||
| 100 | $ 4.35 | |||
| 250 | $ 3.93 | |||
| Digi-Reel® | 1 | $ 7.24 | ||
| 10 | $ 5.62 | |||
| 25 | $ 5.08 | |||
| 50 | $ 4.70 | |||
| 100 | $ 4.35 | |||
| 250 | $ 3.93 | |||
| Tape & Reel (TR) | 500 | $ 3.63 | ||
| 1000 | $ 3.49 | |||
Description
General part information
CLB1108 Series
200 nH Inductor 0.28mOhm Nonstandard 2 Phase
