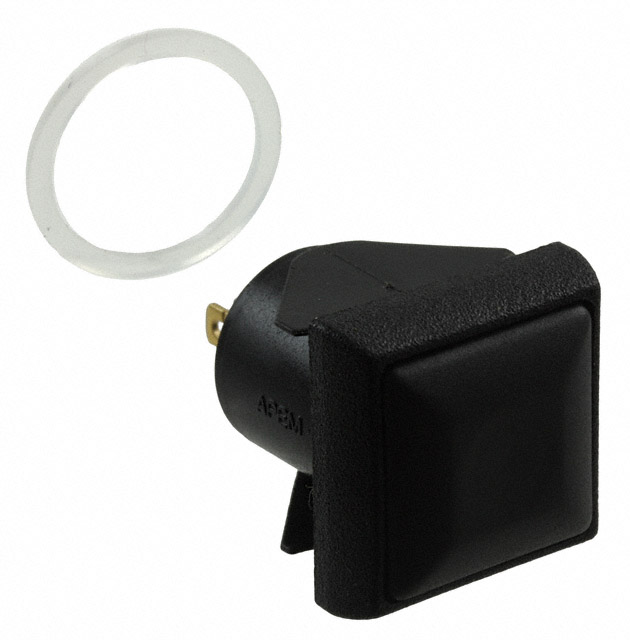

IQC3Z422

Active

APEM

SWITCH PUSH SPST-NO 0.2A 48V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST-NO 0.2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	IQC3Z422

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	200 mA
Electrical Life	500000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	15.9 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard
Voltage Rating - DC	48 V

Part	Switch Function	Color - Actuator/Cap	Current Rating (Amps)	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Ingress Protection	Mounting Type	Circuit	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Electrical Life	Actuator Marking	Features
APEM IQC3Z422	Off-Mom	Black	200 mA	Standard	15.9 mm	48 V	IP54 - Dust Protected Water Resistant	Panel Mount Snap-In	SPST-NO	1000000 Cycles	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	Button Square	500000 Cycles	No Marking	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 28.17

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
