MUN12AD03-SH
ActiveDelta Electronics/Cyntec

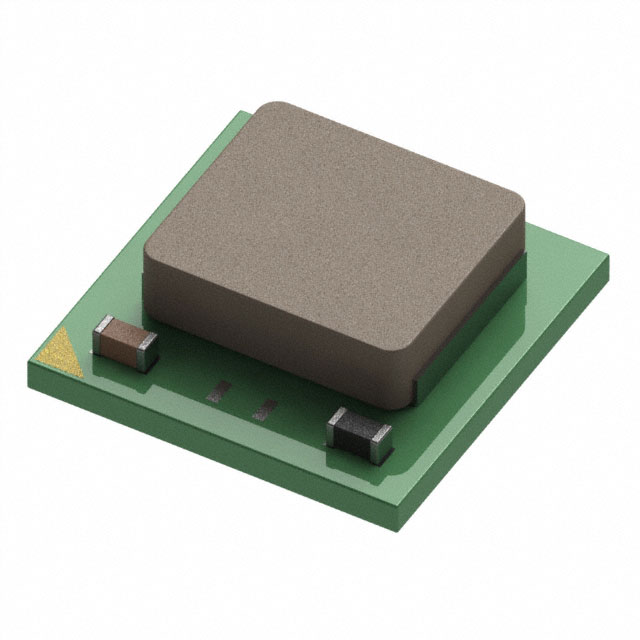

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 9.9W, HYBRID, ROHS COMPLIANT, PACKAGE-11
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MUN12AD03-SH
ActiveDelta Electronics/Cyntec
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 9.9W, HYBRID, ROHS COMPLIANT, PACKAGE-11
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MUN12AD03-SH |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 91 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-LQFN Exposed Pad, Module |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.14 " |
| Size / Dimension [y] | 0.14 " |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [z] | 0.07 " |
| Size / Dimension [z] | 1.7 mm |
| Supplier Device Package | 8-QFN (3.5x3.5) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.46 | |
| Digi-Reel® | 1 | $ 5.46 | ||
| Tape & Reel (TR) | 1000 | $ 5.46 | ||
Description
General part information
MUN12AD03 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5V 3A 4.5V - 16V Input
