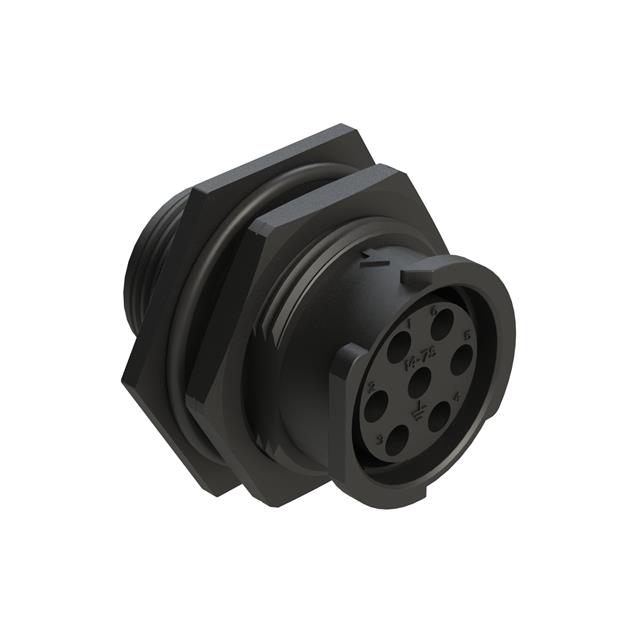

FLS714N7S03

Active

Amphenol Sine Systems Corp

7 POSITION JAM NUT RECEPTACLE, S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLS714N7S03

Active

Amphenol Sine Systems Corp

7 POSITION JAM NUT RECEPTACLE, S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLS714N7S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Unshielded
Type	For Female Sockets

FLS714N Series

Part	Shell Size - Insert	Fastening Type	Features	Mounting Feature	Contact Shape	Contact Type	Housing Color	Insert Material	Primary Material	Note	Orientation	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Size	Connector Type	Type	Material Flammability Rating	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Sine Systems Corp FLS714N3PHEC03	14-3	Bayonet Lock	Cap (Cover)	Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	8	Receptacle Housing	For Male Pins	UL94 V-0
Amphenol Sine Systems Corp FLS714N4P03		Bayonet Lock	Cap (Cover)	Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	12	Receptacle Housing	For Male Pins	UL94 V-0	4	4	14
Amphenol Sine Systems Corp FLS714N3S03	14-3	Bayonet Lock		Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	8	Receptacle Housing	For Female Sockets	UL94 V-0
Amphenol Sine Systems Corp FLS714N12S03	14-12	Bayonet Lock		Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	16	Receptacle Housing	For Female Sockets	UL94 V-0	12
Amphenol Sine Systems Corp FLS714N7S03		Bayonet Lock		Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	16	Receptacle Housing	For Female Sockets	UL94 V-0	7	7	14
Amphenol Sine Systems Corp FLS714N19P03		Bayonet Lock	Cap (Cover)	Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	20	Receptacle Housing	For Male Pins	UL94 V-0	19			19	14
Amphenol Sine Systems Corp FLS714N3P03	14-3	Bayonet Lock	Cap (Cover)	Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K	8	Receptacle Housing	For Male Pins	UL94 V-0
Amphenol Sine Systems Corp FLS714N2P03		Bayonet Lock	Cap (Cover)	Bulkhead - Front Side Nut	Circular	Crimp	Black	Thermoplastic	Plastic	Contacts Not Included	N	Unshielded	125 °C	-40 °C	IP67 IP68 IP69K		Receptacle Housing	For Male Pins	UL94 V-0	4	4	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.55
		10	$ 10.24
		25	$ 9.85
		50	$ 9.45
		100	$ 8.93
		250	$ 8.14
		500	$ 7.62
		1000	$ 6.99

Description

General part information

FLS714N Series

7 Position Circular Connector Receptacle Housing Panel Mount
