E12BB

Active

Switchcraft Inc.

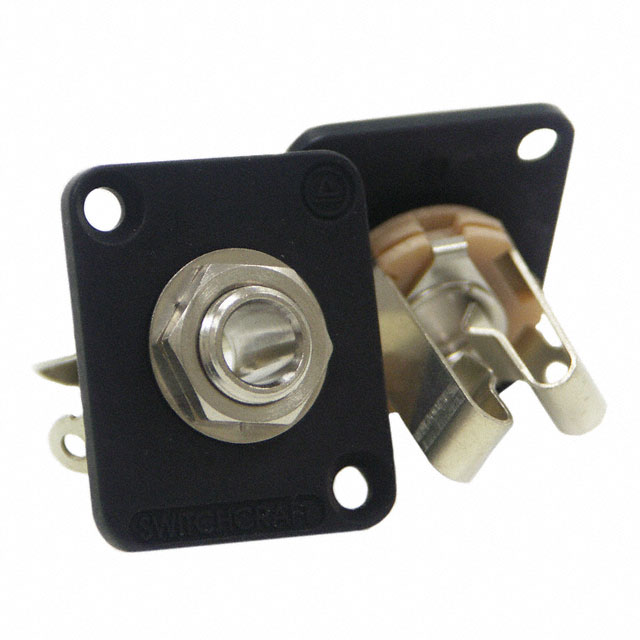

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	E12BB

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Silver
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Features	Mounting Hardware, Flange
Gender	Female
Includes	1 Connector, 1 Nut, 1 Washer, 1 Flange
Internal Switch(s)	False
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Panel Hole Size [diameter]	24 mm
Panel Hole Size [diameter]	0.945 in
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

Part	Gender	Termination	Connector Type	Shielding	Internal Switch(s)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Includes	Body Material	Features	Signal Lines	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material	Contact Material - Plating [custom]	Panel Hole Size [diameter]	Panel Hole Size [diameter]
Switchcraft Inc. E12BBPKG	Female	Solder Eyelet(s)	Phone Jack	Unshielded		3	3	1 Connector 1 Flange 1 Nut 1 Washer 4 Screws	Brass	Flange Mounting Hardware	Stereo	Silver	0.25 in	6.35 mm	Brass	Nickel	24 mm	0.945 in
Switchcraft Inc. E12BB	Female	Solder Eyelet(s)	Phone Jack	Unshielded		3	3	1 Connector 1 Flange 1 Nut 1 Washer	Brass	Flange Mounting Hardware	Stereo	Silver	0.25 in	6.35 mm	Brass	Nickel	24 mm	0.945 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 5.75

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
