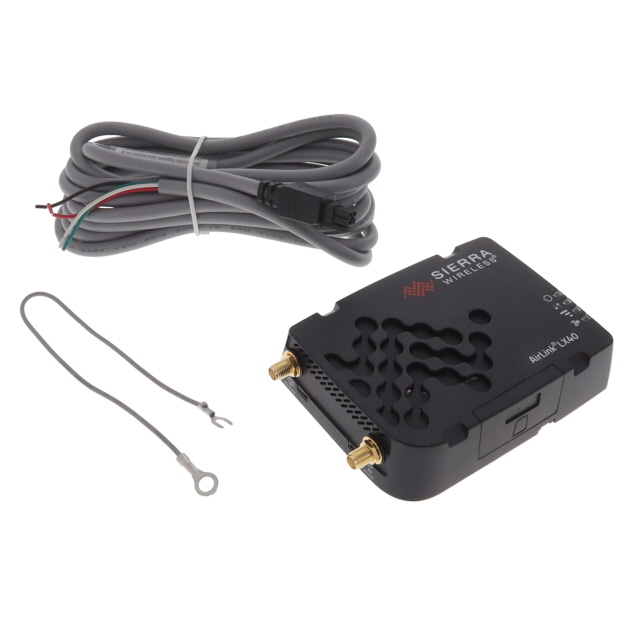

LX40_1104579

Active

Sierra Wireless AirLink

ROUTER LTE NA DC CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sierra Wireless 2020 AirLink® Networking Portfolio

LX40_1104579

Active

Sierra Wireless AirLink

ROUTER LTE NA DC CABLE

Deep-Dive with AI

DocumentsDatasheet Sierra Wireless 2020 AirLink® Networking Portfolio

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LX40_1104579

Applications	General Purpose
Data Rate (Max)	150 Mbps
Frequency	1900 MHz, 900 MHz, 700 MHz, 1.7 GHz
Interface	RJ-45, RS-232, RS-485, Ethernet, USB
Modulation or Protocol	LTE, HSPA+, Cellular, WCDMA
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	7 V

LX40 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Modulation or Protocol	Data Rate (Max)	Interface	Frequency
Sierra Wireless AirLink LX40_1104178	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104177	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104181	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104180	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104182	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104184	36 V	7 V	General Purpose	Cellular HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 850 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104579	36 V	7 V	General Purpose	Cellular HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	1.7 GHz 700 MHz 900 MHz 1900 MHz
Sierra Wireless AirLink LX40_1104573	36 V	7 V	General Purpose	Cellular HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	1.7 GHz 700 MHz 900 MHz 1900 MHz
Sierra Wireless AirLink LX40_1104176	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz
Sierra Wireless AirLink LX40_1104179	36 V	7 V	General Purpose	Cellular GPRS GSM HSPA+ LTE WCDMA	150 Mbps	Ethernet RJ-45 RS-232 RS-485 USB	700 MHz 800 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 359.00

Description

General part information

LX40 Series

4G/3G Cellular, HSPA+, LTE, WCDMA Router AT&T, Verizon Ethernet, RJ-45, RS-232, RS-485, USB

Documents

Technical documentation and resources
