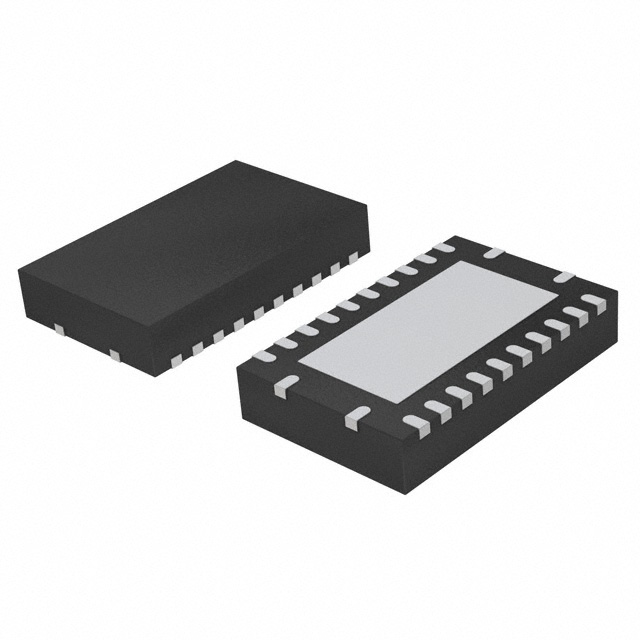

TJA1022HGZ

Active

Freescale Semiconductor - NXP

IC TRANSCEIVER 2/2 24DHVQFN

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC TRANSCEIVER 2/2 24DHVQFN

Technical Specifications

Parameters and characteristics for this part

Specification	TJA1022HGZ

Data Rate	20 kBd
Grade	Automotive
Mounting Type	Surface Mount
Number of Drivers/Receivers [custom]	2
Number of Drivers/Receivers [custom]	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-VFQFN Exposed Pad
Protocol	LIN
Qualification	AEC-Q100
Receiver Hysteresis	175 mV
Supplier Device Package	24-DHVQFN
Supplier Device Package [x]	5.5
Supplier Device Package [y]	3.5
Type	Transceiver
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	5 V

Part	Type	Supplier Device Package	Receiver Hysteresis	Protocol	Data Rate	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Supplier Device Package [y]	Supplier Device Package [x]	Grade	Qualification	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP TJA1022T,118	Transceiver	14-SO	175 mV	LINbus	20 kBd	0.154 in	3.9 mm	14-SOIC	Surface Mount	5 V	18 V	2	2
Freescale Semiconductor - NXP TJA1022TK,118	Transceiver	14-HVSON	175 mV	LINbus	20 kBd			14-VDFN Exposed Pad	Surface Mount	5 V	18 V	2	2	4.5	3
Freescale Semiconductor - NXP TJA1022HGZ	Transceiver	24-DHVQFN	175 mV	LIN	20 kBd			24-VFQFN Exposed Pad	Surface Mount	5 V	18 V	2	2	3.5	5.5	Automotive	AEC-Q100	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2/2 Transceiver LIN 24-DHVQFN (5.5x3.5)
