SP6203ER-L-1-8/TR

Obsolete

MaxLinear, Inc.

IC REG LINEAR 1.8V 300MA 8DFN

Deep-Dive with AI

Search across all available documentation for this part.

SP6203ER-L-1-8/TR

Obsolete

MaxLinear, Inc.

IC REG LINEAR 1.8V 300MA 8DFN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SP6203ER-L-1-8/TR

Control Features	Enable
Current - Output	300 mA
Current - Quiescent (Iq)	100 µA
Current - Supply (Max) [Max]	330 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

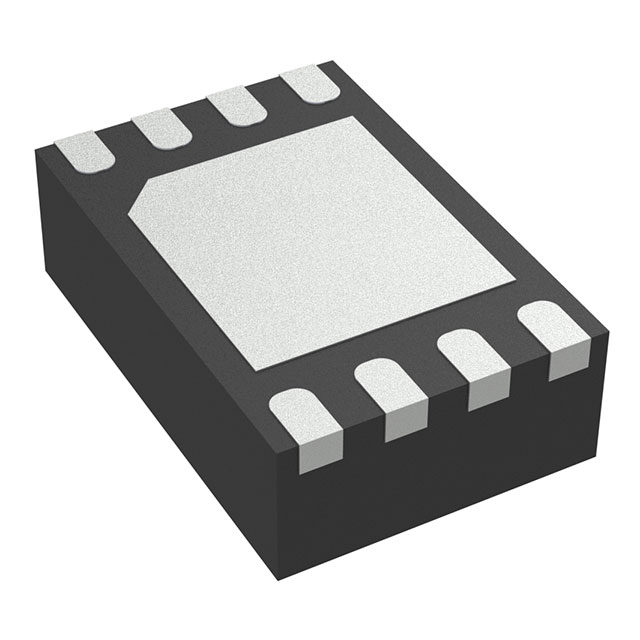

Package / Case	8-VFDFN Exposed Pad
Protection Features	Over Current, Over Temperature
PSRR	67 dB
Supplier Device Package	8-DFN (2x3)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.8 V

SP6203 Series

Part	Package / Case	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Protection Features	Current - Quiescent (Iq)	Mounting Type	PSRR	Voltage - Output (Min/Fixed)	Output Type	Output Configuration	Control Features	Number of Regulators	Voltage Dropout (Max) [Max]	Current - Output	Output Type	Voltage - Output (Max) [Max]
MaxLinear, Inc. SP6203EM5-L-3-3/TR	SC-74A SOT-753	5.5 V	330 µA	125 °C	-40 °C	SOT-23-5	Over Current Over Temperature	100 µA	Surface Mount	67 dB	3.3 V	1.81 mOhm	Positive	Enable	1	0.3 V	300 mA
MaxLinear, Inc. SP6203EM5-L	SC-74A SOT-753	5.5 V	330 µA	125 °C	-40 °C	SOT-23-5	Over Current Over Temperature	100 µA	Surface Mount	67 dB	1.25 V		Positive	Enable	1	0.3 V	300 mA	Adjustable	5.2 V
MaxLinear, Inc. SP6203EM5-L-3-3	SC-74A SOT-753	5.5 V	330 µA	125 °C	-40 °C	SOT-23-5	Over Current Over Temperature	100 µA	Surface Mount	67 dB	3.3 V	1.81 mOhm	Positive	Enable	1	0.3 V	300 mA
MaxLinear, Inc. SP6203ER-L-1-8/TR	8-VFDFN Exposed Pad	5.5 V	330 µA	125 ¯C	-40 °C	8-DFN (2x3)	Over Current Over Temperature	100 µA	Surface Mount	67 dB	1.8 V	1.81 mOhm	Positive	Enable	1		300 mA
MaxLinear, Inc. SP6203EM5-L-2-8/TR	SC-74A SOT-753	5.5 V	330 µA	125 °C	-40 °C	SOT-23-5	Over Current Over Temperature	100 µA	Surface Mount	67 dB	2.8 V	1.81 mOhm	Positive	Enable	1		300 mA
MaxLinear, Inc. SP6203EM5-L-2-5/TR	SC-74A SOT-753	5.5 V	330 µA	125 °C	-40 °C	SOT-23-5	Over Current Over Temperature	100 µA	Surface Mount	67 dB	2.5 V	1.81 mOhm	Positive	Enable	1		300 mA
MaxLinear, Inc. SP6203EM5-L-2-8	SC-74A SOT-753	5.5 V	330 µA	125 °C	-40 °C	SOT-23-5	Over Current Over Temperature	100 µA	Surface Mount	67 dB	2.8 V	1.81 mOhm	Positive	Enable	1		300 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SP6203 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 8-DFN (2x3)

Documents

Technical documentation and resources

No documents available
