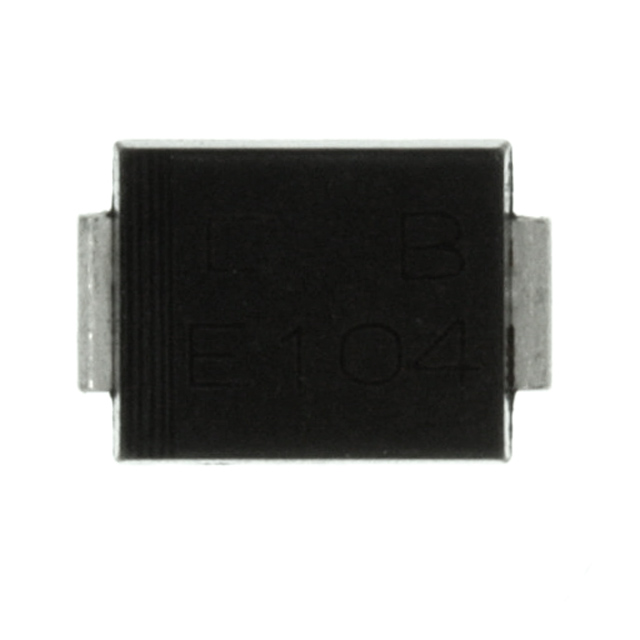

TV06B260JB-G
ActiveComchip Technology
TVS DIODE 26VWM 42.1VC DO214AA
Deep-Dive with AI
Search across all available documentation for this part.
TV06B260JB-G
ActiveComchip Technology
TVS DIODE 26VWM 42.1VC DO214AA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TV06B260JB-G |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 14.25 A |
| Mounting Type | Surface Mount |
| Package / Case | SMB, DO-214AA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 28.9 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 42.1 V |
| Voltage - Reverse Standoff (Typ) | 26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.49 | ||
| 10 | $ 0.42 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.16 | |||
| 15000 | $ 0.15 | |||
| 21000 | $ 0.15 | |||
| 30000 | $ 0.14 | |||
Description
General part information
TV06B260 Series
42.1V Clamp 14.25A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Documents
Technical documentation and resources
No documents available
