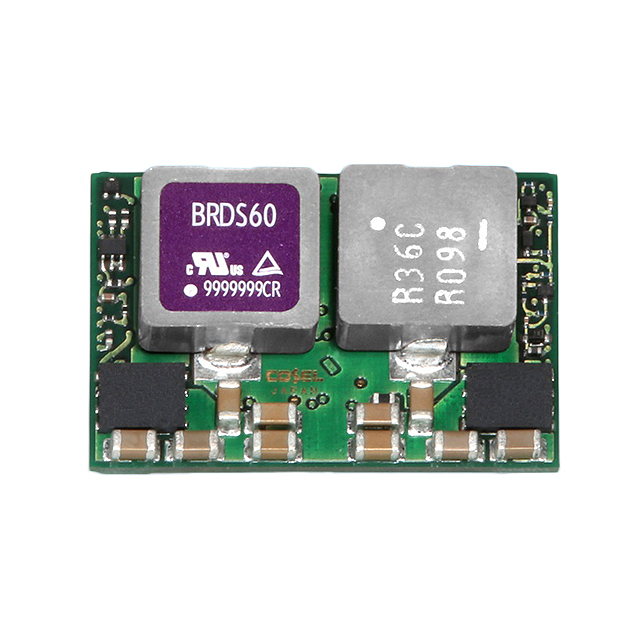

BRDS60-R
ActiveCosel USA, Inc.
DC DC CONVERTER 0.7-2V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BRDS60-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 60 A |
| Efficiency | 88 % |
| Features | OCP, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package / Case | 20-SMD Module |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 8 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 2 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 59.34 | |
Description
General part information
BRDS60 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 2V 60A 4.5V - 14V Input
