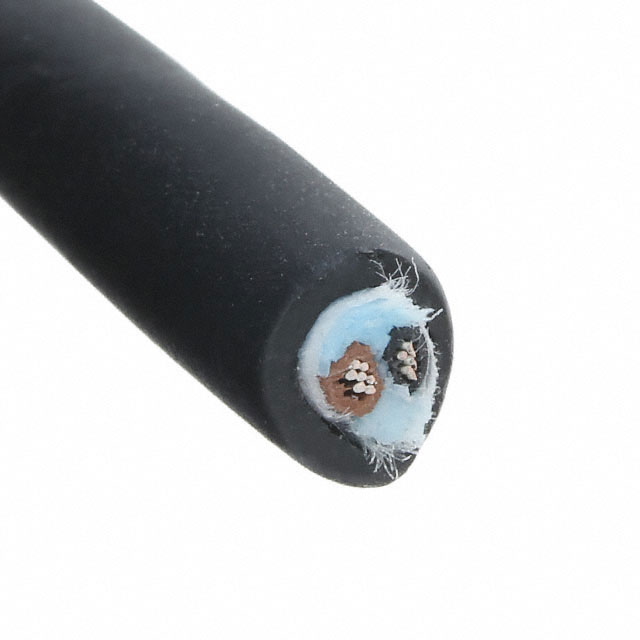

25012 BK199

Active

ALPHA WIRE

CABLE 2COND 24AWG BLACK FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 24AWG BLACK FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25012 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket Color	Voltage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Ratings	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Spool Size	Spool Size	Length
ALPHA WIRE 25012 BK005	Black	300 V	Multi-Conductor	0.156 in	3.96 mm	Poly-Vinyl Chloride (PVC)	Biological Compatibility Rip Cord	ISO 10993 UL Style 20668	24 AWG	Polyurethane (PU)	2	32 AWG	7	30.5 m	100 ft	-30 ░C	90 °C	Copper Tinned
ALPHA WIRE 25012 BK199	Black	300 V	Multi-Conductor	0.156 in	3.96 mm	Poly-Vinyl Chloride (PVC)	Biological Compatibility Rip Cord	ISO 10993 UL Style 20668	24 AWG	Polyurethane (PU)	2	32 AWG	7			-30 ░C	90 °C	Copper Tinned	1000 ft	304.8 m	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 24 AWG Enter Number of Feet in Order Quantity
